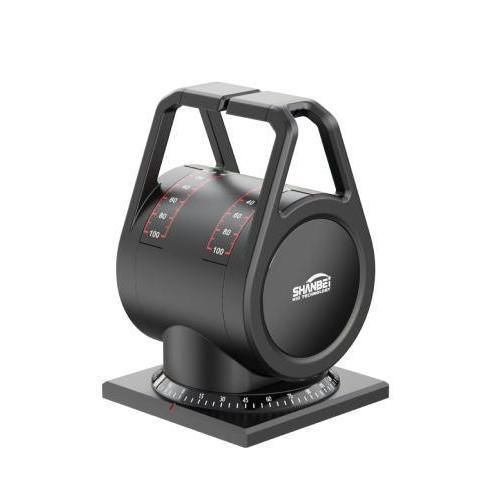

Thruster control lever WLF-74

digitalazimuthfor ships

Overview
The WLF-74 full-rotation azimuth control lever is a marine-grade control handle designed for vessels and test systems that require simultaneous control of propulsion (speed) and heading (orientation). The unit delivers configurable rotation ranges, robust materials and multiple electrical output options suited to bridge and control-station installations.

Type / Grip assembly

• Twin-lever SYNC
• Twin-lever IND

Rotation ranges

• Y-axis (propulsion/RPM): ±60° / 0~60° / -15~60°
• Z-axis (bearing): ±180°

Technical parameters

• Y-axis potentiometer: 5KΩ, linear
• Y-axis stop position: 0°
• Z-axis potentiometer: 5KΩ
• Z-axis stop positions: 0°, ±90°, 180°
• Body material: aluminum alloy, black spray finish
• Gear material: copper alloy
• Spindle: stainless steel
• Backlight: cold light film
• IP rating (lever): IP56
• Transmission: gear drive
• Dimming: 0~24V external supply
• Linear tolerance: ±1.0%
• Wiring: 16 I/O terminal blocks
• Mounting: 4 x M4 studs, panel thickness 8mm

Options

• Grip assembly: Twin-lever SYNC, Twin-lever IND
• Y-axis rotation options: ±60°, 0~60°, -15~60°
• Bearing rotation: ±180°
• Output signals: 5K sin/cos; 4~20mA for propulsion/rotation; dry contact switch
• Backlight adjustment: 0~24V
• Installation location: FWD, AFT

Specifications

• Model: WLF-74
• Product type: Azimuth control lever (full-rotation control handle)
• Y-axis range: ±60° or 60° or -15~75°
• Z-axis range (bearing): ±180°
• Potentiometers: Y-axis 5KΩ; Z-axis 5KΩ
• Spindle material: stainless steel
• Body material: aluminum alloy with black spray finish
• Gear material: copper alloy
• IP rating: IP56
• Transmission: gear drive
• Backlight: cold light film; dimming 0~24V external supply
• Output options: 5K sin/cos; 4~20mA for propulsion/rotation; dry contact switch
• Linear tolerance: ±1.0%
• Wiring: 16 I/O terminal blocks
• Mounting: 4 x M4 studs; panel thickness 8mm
