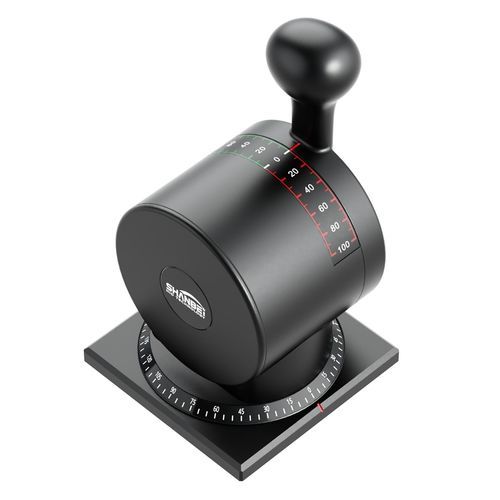

Throttle control lever WLF-72

mechanicalazimuthfor boat

Overview
The WLF-72 azimuth control lever is designed for marine applications and test equipment where simultaneous control of heading (azimuth) and propulsion speed is required. It is suited for bridge consoles, simulator stands and control panels on vessels and workboats.

Style / Type

• Ball-head handle
• Finger-push handle
• Left position: 72L
• Right position: 72R

Parameters
Supply voltage: 18~26 V DC
Y-axis range: ±60°
Y-axis potentiometer: 5 KΩ, linear taper
Y-axis neutral position: 0°
Body material: Aluminum alloy, black finish
Gear material: Copper alloy
Backlight: Cold-light film
IP rating: IP56
Mounting: 4 × M4 studs, panel thickness 8 mm
Z-axis range: 360° continuous rotation
Z-axis potentiometer: 5 KΩ
Z-axis stop positions: 0°, ±90°, 180°
Spindle material: Stainless steel
Transmission: Gear drive
Dimming: 0~24 V external supply dimming
Linear tolerance: ±1.0%
Wiring: 16 I/O terminal blocks

Options

• RPM rotation range: ±60° or 0~60°
• Bearing rotation range: ±180°
• Output signal: 5 KΩ sin/cos
• Backlight adjustment: 0~24 V
• Location: FWD or AFT

Accessories
No specific accessories are listed for the standard unit; spare parts and mounting kits available on request.

Technical specifications

• Model: WLF-72
• Supply voltage: 18~26 V DC
• Y-axis range: ±60°
• Z-axis range: 360° continuous rotation
• Potentiometers: Y-axis 5 KΩ, Z-axis 5 KΩ
• Body material: Aluminum alloy (black finish)
• Gear material: Copper alloy
• Spindle material: Stainless steel
• IP rating: IP56
• Mounting: 4 × M4 studs, panel thickness 8 mm
• Transmission: Gear drive
• Backlight: Cold-light film; adjustable 0~24 V
• Output signal: 5 KΩ sin/cos
• Linear tolerance: ±1.0%
• Wiring: 16 I/O terminal blocks
