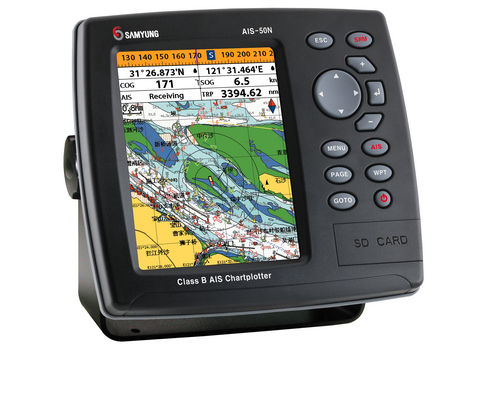

Boat AIS 50N

class B transponderwith screen

Features • Preloaded digital worldwide cartography • NAVIONICS®GOLD SD card • Real time display of navigation information • Updated electronic chart available • Built-in map with range rings and 12 zoom ranges from 0.01 to 32 nm • Cursor ID mode allows easy readout of target vessel Specifications • Size : 164 mm(H) x 183 mm(W) x 91 mm(D) • Display : 5.6 diagonal, TFT color LED, 480 x 640 pixels • Supply voltage : 10 to 34 V DC • Supply current : 13.8 V • Operating tem : -10° to 50°C • Alarms : Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate, low battery, low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels. • Chart card : NAVIONICS® GOLD • User card : SD Card • Waypoints : Up to 5000, with default or userdefined alphanumeric names up to eight characters. • Routes : 100 Routes, with up to 100 points each • Tracks : By time or distance, 10 track of 5000 points • Chart datums : 216 Chart datums (see next page) One user-defined map shift. • Chart scale : 0.2 to 500 nm for chart (chart dependent) down to 0.01 nm in plotter mode. • NMEA : NMEA 0183 4800, 9600, 38400 baud NMEA 2000
