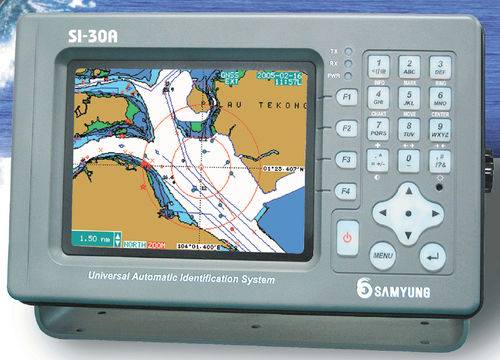

Ship AIS SI 30A

Class Awith screen

Features • Class-A Universal AIS Complying with IMO MSC. 74(69) Annex3, IEC 61993-2, ITU-R M.1371-3, ITU-R M.493-13, ITU-R M.825(DSC), IEC-60945, IEC-61162-1/2. • Displaying navigational data based on Dynamic / Static data. • Completely compatible with all system using NMEA standard. • Edition of user message on navigation & ship securities is available. • GLONASS/GPS function available receiving Signal from Russian Satellite. • Interfaces with RADAR, ECDIS, GYRO COMPASS, and external GPS, etc. • Easy identification on other ship’s status by providing electronic chart data. • System self-restoring function enhances stability. • Adopted user-friendly one touch keypad. Specifications ▶ General • Power Consumption : 50W peak / 10W average(Main Unit) • Power Voltage : 12V DC -10% +30%(DC10.8V~15.6V) • Power supply (SP-700AD) : Input 24V DC -10% +30% / 110V AC / 220V AC • Default Frequencies : AIS1 (CH 87B) : 161.975 MHz AIS2 (CH 88B) : 162.025 MHz DSC (CH70) : 156.525 MHz • Frequency range : 156.025 ~ 162.025 MHz • Transponder size/weight : 221 x 165 x 95 mm, 1.5 kg • MKD Dispaly : 5.6 olor TFT LED • MKD size/weight : 255 x 162 x 75 mm, 0.9 kg • GPS size/weight: 90 x 65mm (+140mm mounting bar) 0.2kg
