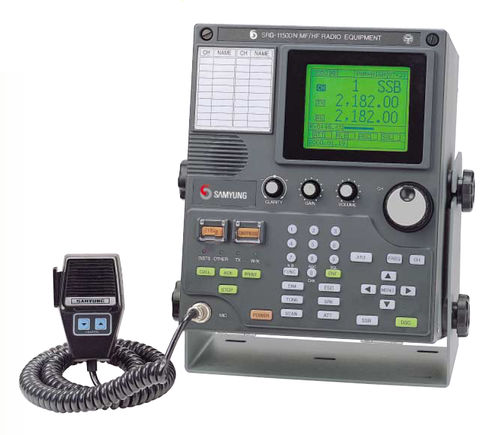

Marine radio SRG-1150DN / 1250DN

for shipsMFHF

Features • Compliant with ITU, IMO and GMDSS • Compact & transmitter-receiver with a built-in DSC • Easy to read information with large LCD(10.4) for NBDP terminal • Easy to read Rx & Tx frequency at a time • Available scanning variability of transmitter output, frequency & channel • High stability for frequency with 10Hz Step Synthesizer • Built-in alarm signal(2182KHz) • Storing up to 100 transmitted message(editable) • Storing up to 100 received message (every 50 messages for distress and ordinary) • Self-diagnosis function for easy maintenance Specifications ▶ GENERAL • Frequence range : TX :1.6~27.5MHz (10Hz STEP) RX :500KHz~29.9999MHz (10Hz STEP) • TX/RX channel : ITU channel, 300 memory channel • Frequency tolerance : Within 10HZ • Type of emission : J3E, H3E, F1B • Operation : Simplex & Semi-duplex • Ambient temperature & Humidity : -15℃~+55℃, 95% • Power supply : DC24V±15%(2.5A at Reception, 15A at Transmittion / SRG-1150DN) (2.5A at Reception, 25A at Transmittion / SRG-1250DN) ▶ TRANSMITTER • Type of emission and output : J3E(150W), F1B(100W), H3E(75W):SRG-1150DN J3E(250W), F1B(150W), H3E(75W):SRG-1250DN • Modulation : Low level balanced • Occupied bandwidth : Within J3E(3KHz), F1B(0.5KHz) • Two-tone distress signal : 1300, 2100Hz ▶ RECEIVER • Sensitivity : J3E 3uV, F1B 3uV, H3E 6uV, S/N 20dB 100m/w • Intermediate frequency : 49.455MHz, 455KHz • Overall distortion and noise : More than 20dB • Input impedance : 50Ω
