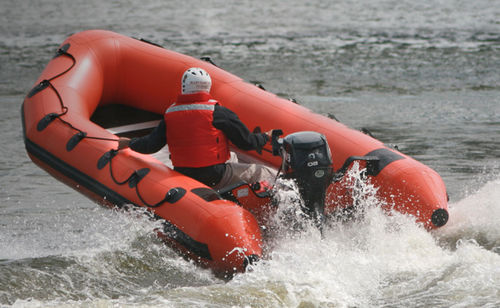

Outboard inflatable boat NAV HD series

rigidopensea

Overview
The NAV HD SERIES is a 100% Canadian handmade product. All boats meet and/or exceed marine construction standards including TP 1332 (Construction Standards for Small Vessels for non pleasure crafts). The most popular models are the 14 feet, 16 feet and 19 feet. All the NAV HD (Heavy Duty) series are the only boats on the market entirely made of Hypalon 1880 dtx. Every model in the NAV HD series is equipped with the speed tubes, a high-performance feature that gives incomparable manoeuvrability and stability while performing sharp turns at high speed. The generous width and the rigidity of the 1880 DTX Hypalon tubes provide excellent performance on open ocean and shallow water.

Key features

• 100% Canadian handmade construction
• 1880 dtx Hypalon™ buoyancy tubes, speed tubes, floor bottom and inflatable keel
• Speed tubes for improved safety, performance and higher payload
• Rapid deployment options including Fast Inflation System (FIS) on some models
• Removable anodized aluminium T6063 floor (3 sections) with heavy duty aluminum stringers
• All hardware in stainless steel and heavy duty rubstrake reinforcement

SPECIFICATIONS
Models: NAV 14HD, NAV 16HD, NAV 17HD, NAV 19HD
LOA: 4.19 m, 4.87 m, 5.35 m, 5.9 m
Overall Width: 1.75 m, 2.10 m, 2.15 m, 2.5 m
Weight: 143 kg, 170 kg, 188 kg, 253 kg
Airtight chambers on the buoyancy tubes: 4, 5, 5, 5
Airtight speed tube: 2, 2, 2, 2
Airtight inflatable keel: 1, 1, 1, 1
Maximum number of persons: 8, 10, 12, 15
Internal Length: 3.10 m, 3.53 m, 3.71 m, 4.2 m
Internal Beam: 0.81 m, 1.00 m, 1.06 m, 1.2 m
Buoyancy Tube Diameter: 0.43 m, 0.55 m, 0.58 m, 0.64 m
Maximum payload including engine and fuel: 1100 kg, 1300 kg, 1800 kg, 2500 kg
Shaft Length: 20", 20", 20", 20"
Recommended HP: 30 HP, 50 HP, 60 HP, 90 HP
Engine Maximum HP: 40 HP, 60 HP, 75 HP, 120 HP

Fabric

• Color: Black or Military Grey
• 1880 dtx Hypalon™ buoyancy tubes
• 1880 dtx Hypalon™ speed tubes
• 1880 dtx Hypalon™ floor bottom
• 1880 dtx Hypalon™ inflatable keel

Valves

• Buoyancy tube intercommunication valves (3 & 4) and inflation valves Halkey Roberts (4 & 5)
• Keel inflation valve (1)
• Speed tubes inflation valves (2)

Reinforcement

• Heavy Duty rubstrake all around
• One additional layer of Hypalon under the keel
• Flat rubbing strake under the keel from bow to transom
• Flat rubbing strake under the speed tubes
• 2 step pads in Black 1670 dtx Hypalon™
• All hardware in stainless steel
• Transom large ovoid attachment reinforced with 3 layers of Hypalon

Floor

• Removable anodized aluminium T6063 floor (thickness: 2 mm) in 3 sections
• Bow thrustboard and bow floorboard
• Heavy duty aluminum stringers (2)

Handling

• Exterior lifeline all around
• Bow handle in stainless steel

Towing and lifting

• Two bow lifting rings, stainless steel folding pad eyes on thrust boards
• Two aft lifting points (U-Bolts) on the transom (interior) in stainless steel
• Two tie down eyes (U-bolt) in stainless steel on the exterior of the transom
• Two large towing D-Rings on the tube at the bow

Accessories included with each unit

• Foot pump with hose and adaptor
• Repair kit
• Manometer (pressure gauge)
• 2 paddles (aluminum with black plastic blades)
• Boat carry bags (2) — one for the boat and one for the floorboards

Special models / systems
The NAV HD–FIS–RUP model is designed for rapid deployment (helicopter, submarine, C-130) and is equipped with the patented Fast Inflation System (FIS) allowing inflation of all chambers in approximately 60 seconds using a scuba bottle. Patent CA2541885 & US 7322309.

Technical specifications

• Series: NAV HD series
• Materials: 1880 dtx Hypalon™ for tubes, speed tubes, floor and keel
• LOA range: 4.19 m to 5.9 m (models 14HD to 19HD)
• Overall width range: 1.75 m to 2.5 m
• Weight range: 143 kg to 253 kg
• Maximum persons: 8 to 15 depending on model
• Maximum payload: 1100 kg to 2500 kg depending on model
• Recommended HP range: 30 HP to 90 HP; Engine max HP up to 120 HP
• Floor: removable anodized aluminium T6063, 2 mm thickness, 3 sections
• Included accessories: pump, repair kit, manometer, 2 paddles, 2 carry bags
