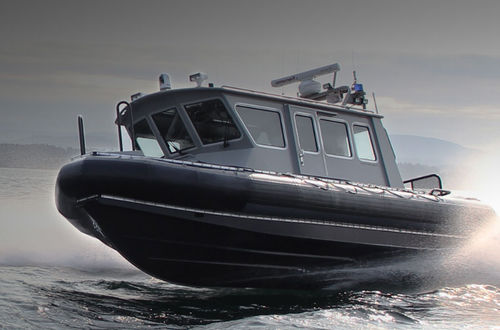

Pilot boat TITAN 290

dieseloutboardRHIB

Product Overview
The TITAN 290 Pilot Cabin RHIB is built for mission flexibility, offering Forward Leaning, Aft Leaning and Cuddy Cabin configurations. Configurable seating (bench, air-suspension or shock-mitigating seats), environmental systems (heater, A/C), storage and sanitary options support offshore patrol, SAR, medical evacuation and tactical roles. Modern navigation and communications suites can be integrated to customer specification.

Design & Capabilities

• Intended uses: Offshore operations, Search and Rescue (SAR), Tactical command and support
• Modular interior and mission-specific outfitting (medical/ambulance, workstations, equipment racks)
• Self-righting characteristics reported on related T-series hulls for enhanced safety in extreme conditions
• Multiple propulsion choices: outboards or inboard diesel with waterjets depending on speed and draft requirements

Tabulated Specifications
CONFIGURATION | TITAN 290 PILOT CABIN RHIB FWD | TITAN 290 PILOT CABIN RHIB AFT
Overall Length | 29'6" (8.99 m) | 29'6" (8.99 m)
Overall Beam | 11'4" (3.45 m) | 11'4" (3.45 m)
Overall Draft | 2'11" (89 cm) | 2'11" (89 cm)
Maximum Horsepower | 700 hp | 700 hp
Speed Range | 45+ knots | 45+ knots
Capacity | 16 Persons | 16 Persons
Fuel Capacity | 909 Litres | 909 Litres
Dry Weight | 7700 LBS (3500 Kgs) | 7700 LBS (3500 Kgs)
Category | B | B
Configuration | Pilot Cabin, Cuddy Cabin | Pilot Cabin, Cuddy Cabin
Customization | Unlimited – Mission specific to suit your needs | Unlimited – Mission specific to suit your needs

Additional Notes
Interior layouts can be adapted for ambulance/medical evacuation roles with dedicated stretcher and backboard securing points. Mission fittings (fuel transfer, deck mounts, equipment lockers) can be integrated per client requirements.

Technical specifications

• Model: TITAN 290 Pilot Cabin RHIB (Forward and Aft configurations)
• Overall length: 29'6" (8.99 m)
• Beam: 11'4" (3.45 m)
• Draft: 2'11" (89 cm)
• Maximum installed power: 700 hp
• Typical speed: 45+ knots (dependent on propulsion)
• Person capacity: 16 persons
• Fuel capacity: 909 litres
• Dry weight: approx. 7700 lbs (3500 kg)
• Category classification: B
• Available configurations: Pilot Cabin, Cuddy Cabin; interior options include heater, A/C, seating variants, storage, toilet
• Customization: mission-specific outfitting available
