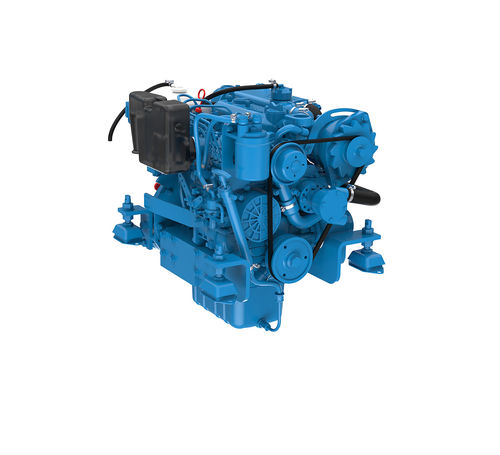

Inboard engine N3.30
dieselboatingprofessional vessel

inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
inboard engine
Add to favorites
Compare this product


Characteristics

Type
inboard
Power source
diesel
Market
boating, professional vessel
Technology
atmospheric, mechanical fuel injection
Engine type
in-line
Cooling system
water-cooled
Lubrication
full-flow oil filter
Rating
rating 5
Pollution control standard
Tier 3
Other characteristics
4-stroke
Power

29 ch
(29 hp)

Displacement

1,131 cm³
(38 US fl oz)

Number of cylinders

3 unit

Engine speed

3,600 rpm
(22,619 rad.min-1)

Max. installation angle

15 °

Bore

78 mm
(3.1 in)

Stroke

78.4 mm
(3.1 in)

Length

667 mm
(26 in)

Width

467 mm
(18 in)

Height

589 mm
(23 in)

Weight

136 kg
(300 lb)

Description

ENGINE BlocK „3 Cylinders in line „Gear-driven valve train „Water cooled exhaust manifold FUEl SYSTEM „Mechanical governor „Cam driven in-line injection pump „Fuel feed pump with hand primer „Fuel filter LUBRIcATION SYSTEM „Replaceable full-flow oil filter „Oil dipstick „Oil cooler COOLING SYSTEM „Closed cooling with heat exchanger „Gear driven self-priming raw water pump „Coolant circulating pump „Water cooled exhaust elbow ElEcTRIcAl SYSTEM & INSTRUMENTATIoN „12 V Electrical system „12 V / 120 A alternator „Electric starter motor „Electric stop function „Instrumentation panel, including Start/Stop, tachometer & alarms „Extension cable harness with plug-and-play AIR INTAKE „Mounted air cleaner OTHER FEATURES „Flexible engine mounting „Bracket for control cables OPTIONA EQUIPMENTS & ACCESSORIES „Keel cooling adaptation „Complete marine propulsion systems „Throttle and shift controls„Additional instrumentation, Flying bridge extension harness„Polyester frame (Sail Drive version) „Engine mounting adaptation„Two pole electrical system „Water boiler systems „Stuffing box connections„Complete fuel systems „Complete exhaust systems„SOLAS approved version RATINGS „Up to 1000 annual operating hours „Load factor up to 35% „Full power for no more than 30 minutes out of each 8 hours of operation. The remaining time must be at, or below cruising speed TRANSMISSIONSSHAFT lINE „TMC40 „TTMC35A - TTMC35P „ZF10M SAIl DRIvE „Sail Drive SP60 „Contact your Nanni representative for more details and availability about transmissions types and models range
