Emergency generator set 4M05
dieselfor yachtfor ships

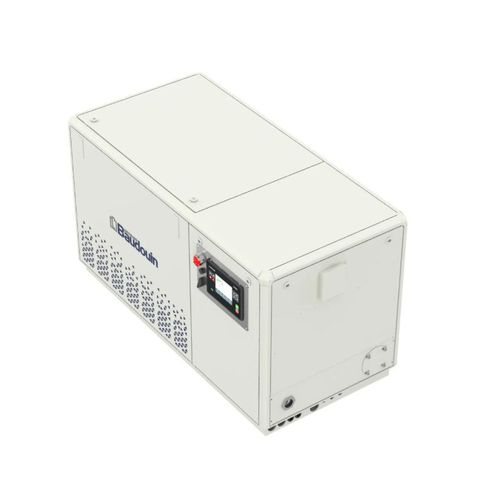

Emergency generator set - 4M05 - MOTEURS BAUDOUIN - diesel / for yacht / for ships

Emergency generator set - 4M05 - MOTEURS BAUDOUIN - diesel / for yacht / for ships - image - 2

Emergency generator set - 4M05 - MOTEURS BAUDOUIN - diesel / for yacht / for ships - image - 3

Emergency generator set - 4M05 - MOTEURS BAUDOUIN - diesel / for yacht / for ships - image - 4

Emergency generator set - 4M05 - MOTEURS BAUDOUIN - diesel / for yacht / for ships - image - 5

Add to favorites

Compare this product

Go to the MOTEURS BAUDOUIN website for more information

Characteristics

Motor type

diesel

Application domain

for yacht, for ships

Frequency

50 Hz

Options and accessories

emergency, auxiliary

Output power

Max.: 35 kW
(47.6 hp)

Min.: 20 kW
(27.2 hp)

Power in kVA

Max.: 44 kVA
(59.82 hp)

Min.: 25 kVA
(33.99 hp)

Rotational speed

Max.: 1,500 rpm
(9,425 rad.min-1)

Min.: 700 rpm
(4,398 rad.min-1)

Displacement

2,500 cm³
(85 US fl oz)

Number of cylinders

4 unit

Description

Overview
Marine genset model 4M05 designed for auxiliary and emergency electrical supply on vessels and offshore installations. Intended for continuous prime (PRP) use at 50 Hz; adapted to withstand marine operating conditions.

Engine Data

Cylinders: 4
Bore & Stroke: 90 x 98 mm
Total displacement: 2.5 L
Engine rotation: Counterclockwise
Idle speed: 700 rpm
Flywheel: SAE 3
Flywheel housing: SAE 11.5

Ratings (performance)

4M05 — PRP — 50 Hz — 25 kVA (20 kWe) — 1500 rpm — 252 g/kWh — 4.5 l/h — Certifications: N/A
4M05 — PRP — 50 Hz — 35 kVA (28 kWe) — 1500 rpm — 240 g/kWh — 6.0 l/h — Certifications: N/A
4M05 — PRP — 50 Hz — 44 kVA (35 kWe) — 1500 rpm — 272 g/kWh — 8.5 l/h — Certifications: N/A

Downloads

4M05 Genset spec. Sheet - English
Marine Product Guide - English

Technical specifications

Cylinders: 4
Bore & Stroke: 90 x 98 mm
Total displacement: 2.5 L
Engine rotation: Counterclockwise
Idle speed: 700 rpm
Flywheel: SAE 3
Flywheel housing: SAE 11.5
Available PRP ratings at 50 Hz: 25 kVA (20 kWe), 35 kVA (28 kWe), 44 kVA (35 kWe)
Nominal speed for ratings: 1500 rpm
Fuel consumption indicators included in ratings (g/kWh and l/h)
