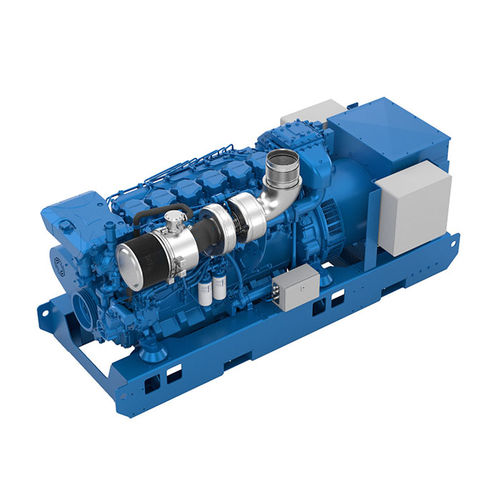

Diesel generator set 6M26.3
for ships60 Hz50 Hz

diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Motor type
Application domain
for ships
50 Hz, 60 Hz
Pollution control standard
Options and accessories
high-speed, emergency
Output power

455 kVA, 520 kVA, 545 kVA, 590 kVA
(618.6 hp, 707 hp, 741 hp, 802.2 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)


16 l
(4 gal)

Number of cylinders

6 unit


3,003 mm
(118.2 in)


1,428 mm
(56.2 in)


1,534 mm
(60.4 in)

Net weight

3,637 kg, 3,769 kg
(8,018 lb, 8,309 lb)


Genuine marine design with simple solutions, easy routine maintenance, engine block inspection hatches Global environment care with low exhaust emissions and controlled fuel consumption at any running cycle Simple technology with mechanical injection Life cycle cost efficiency with extended mean time between overhauls (MBTO) Prime running power (PRP) l Variable load with mean power calculated on 250 running hours l No restriction on use if mean power ≤75% of nominal power l Total operating time at 100% nominal power shall not exceed 500 hours per year l 10% overload available 1 hour each 12 hours Engine and block Cast iron cylinder block, with replaceable cylinder liners Separate cast iron cylinder heads Replaceable valves guides and seats Steel forged crankshaft with 7 bearings Light alloy piston with 3 high performance piston rings Cooling system Fresh / raw water heat exchanger with integrated thermostatic valves and expansion tank Cast iron centrifugal fresh water pump, mechanically driven Bronze self-priming raw water pump, mechanically driven Fuel System In line injection pump with flanged electronic speed governor Double wall injection bundle Duplex fuel filters
