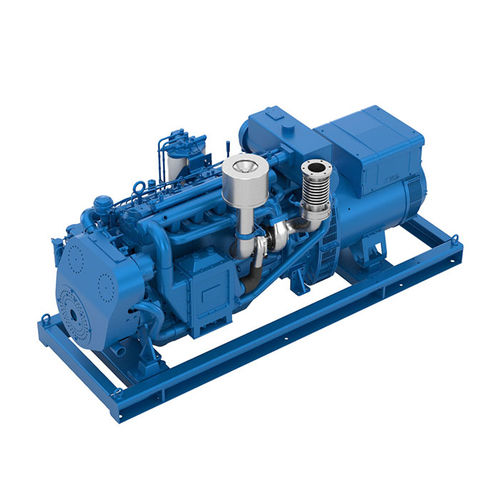

Diesel generator set 6W105S
for ships60 Hz50 Hz

diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
diesel generator set
Add to favorites
Compare this product


Motor type
Application domain
for ships
50 Hz, 60 Hz
Options and accessories
high-speed, emergency
Output power

150 kVA, 155 kVA, 170 kVA, 185 kVA
(203.9 hp, 210.7 hp, 231.1 hp, 251.5 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)


7 l
(2 gal)

Number of cylinders

6 unit


1,360 mm
(53.5 in)


885 mm
(34.8 in)


1,076 mm
(42.4 in)

Net weight

780 kg
(1,720 lb)


Continuous compact power with reference performances in its category Easy service with accessible components and unit cylinder heads Simple technology with mechanical injection Life cycle cost efficiency with extended mean time between overhauls (MBTO) Prime running power (PRP) l Variable load with mean power calculated on 250 running hours l No restriction on use if mean power ≤75% of nominal power l Total operating time at 100% nominal power shall not exceed 500 hours per year l 10% overload available 1 hour each 12 hours Engine and block Cast iron cylinder block, with replaceable cylinder liners Separate cast iron cylinder heads Replaceable valves guides and seats Steel forged crankshaft Light alloy piston with 3 high performance piston rings Cooling system Fresh / raw water heat exchanger with integrated thermostatic valves and expansion tank Cast iron centrifugal fresh water pump, mechanically driven Bronze self-priming raw water pump, mechanically driven Fuel System In line injection pump with flanged electronic speed governor Double wall injection bundle Duplex fuel filters Water separator
