Propulsion engine 6M21.3 SCRdieselcommercialwork
Add to favorites
Compare this product
Characteristics
- Type
- propulsion
- Power source
- diesel
- Market
- for boat, commercial, for ships, work
- Technology
- SCR
- Pollution control standard
- IMO 3
- Power
368 kW, 405 kW, 441 kW
(500.3 hp, 550.6 hp, 599.6 hp)- Displacement
12,500 cm³
(423 US fl oz)- Number of cylinders
6 unit
- Engine speed
650 rpm, 1,800 rpm, 2,100 rpm
(4,084 rad.min-1, 11,310 rad.min-1, 13,195 rad.min-1)- Bore
127 mm
(5 in)- Stroke
165 mm
(6.5 in)
Description
Overview

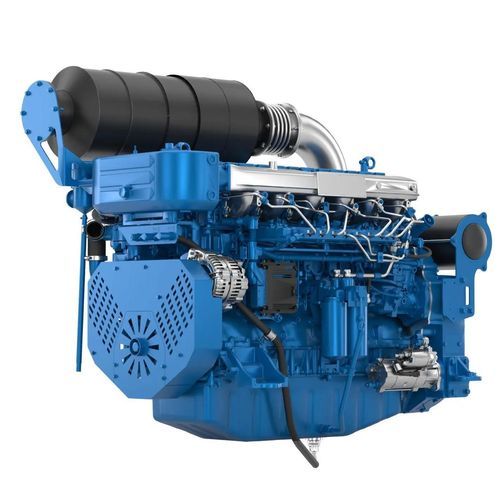

The 6M21.3 SCR is a Baudouin marine propulsion engine designed for commercial and workboat applications, compliant with IMO Tier III requirements when equipped with SCR aftertreatment.
Applications
Engine data
Ratings
Certifications & emissions
Downloads
Technical specifications
The 6M21.3 SCR is a Baudouin marine propulsion engine designed for commercial and workboat applications, compliant with IMO Tier III requirements when equipped with SCR aftertreatment.
Applications
- Marine propulsion for commercial vessels, tugs, workboats and fishing boats
- Inland waterway vessels requiring IMO III compliance
Engine data
- Cylinders: 6
- Bore & Stroke (mm): 127 x 165
- Total displacement: 12.5 L
- Engine rotation: Counterclockwise
- Idle speed: 650 RPM
- Flywheel: 14"
- Flywheel housing: SAE 1
Ratings
- P1 - 368 kW (500 HP) @ 1800 RPM - IMO III
- P2 - 405 kW (550 HP) @ 1800 RPM - IMO III
- P3 - 441 kW (600 HP) @ 2100 RPM - IMO III
Certifications & emissions
- Designed for IMO Tier III compliance with SCR (Selective Catalytic Reduction) exhaust aftertreatment
Downloads
- 6M21.3 SCR Spec. Sheet - English
- Marine Product Guide
Technical specifications
- Manufacturer: Baudouin
- Model: 6M21.3 SCR
- Type: Marine propulsion engine
- Total displacement: 12.5 L
- Power ratings: P1 368 kW / P2 405 kW / P3 441 kW
- Certifications: IMO III (with SCR)
