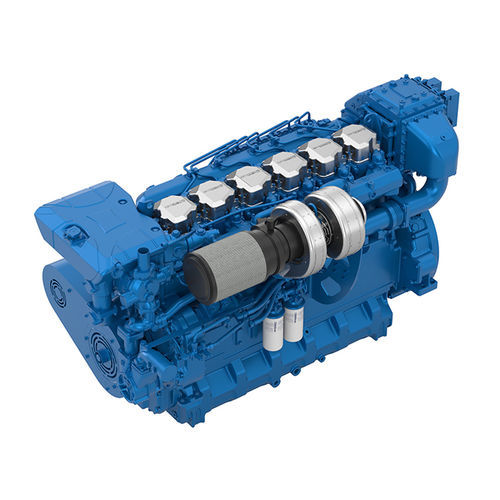

Propulsion engine 6M26.3recreationalcommercialin-line
Add to favorites
Compare this product
Characteristics
- Type
- propulsion
- Market
- recreational, commercial
- Engine type
- in-line
- Cooling system
- water-cooled
- Rotation direction
- left hand
- Pollution control standard
- IMO 2
- Power
Max.: 599 kW
(814.4 hp)Min.: 442 kW
(601 hp)- Displacement
16 l
(4 gal)- Number of cylinders
6 unit
- Engine speed
Max.: 2,100 rpm
(13,195 rad.min-1)Min.: 1,800 rpm
(11,310 rad.min-1)- Bore
150 mm
(5.9 in)- Stroke
150 mm
(5.9 in)- Compression ratio
15 unit
- Length
2,102 mm
(83 in)- Width
1,229 mm
(48 in)- Height
1,127 mm
(44 in)- Weight
2,024 kg
(4,462 lb)
Description
Product overview
The Baudouin 6M26.3 is a marine propulsion engine designed for commercial and recreational vessels, compliant with current IMO II, EPA3 and RCD2 standards for sea and inland navigation.
Engine data
Ratings
Downloads
Technical specifications
The Baudouin 6M26.3 is a marine propulsion engine designed for commercial and recreational vessels, compliant with current IMO II, EPA3 and RCD2 standards for sea and inland navigation.
Engine data
- Cylinders: 6 in line
- Bore x stroke: 150 x 150 mm
- Total displacement: 15.9 L
- Compression ratio: 15/1
- Engine rotation: Counterclockwise
- Idle speed: 650 RPM
- Flywheel: 14 in
- Flywheel housing: SAE 1
- Certifications: IMO II, EPA 3, RCD2
Ratings
- P1 — 601 HP / 442 kW @ 1800 RPM — IMO II / EPA3 (COM/REC)
- P2 — 659 HP / 485 kW @ 1800 RPM — IMO II
- P2 — 700 HP / 515 kW @ 2000 RPM — IMO II / EPA3 (COM/REC)
- P2 — 751 HP / 552 kW @ 2100 RPM — IMO II / EPA3 (COM/REC) — RCD 2
- P3 — 814 HP / 599 kW @ 2100 RPM — IMO II / EPA3 (COM/REC) — RCD 2
Downloads
- 6M26.3 Spec. Sheet - English
- Marine Product Guide - English
Technical specifications
- Model: 6M26.3
- Product type: Marine propulsion engine
- Typical applications: Main propulsion for commercial and recreational vessels; suitable for sea and inland navigation
- Manufacturer: Baudouin
- Primary image filename: Baudouin_Marine_6M26.3_HERO.jpeg
