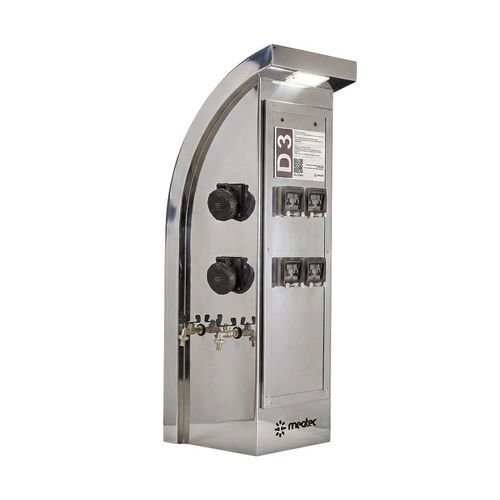

Pedestal with built-in light Bellia
electrical distributionwater supplyfor docks

pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
Add to favorites
Compare this product


Characteristics

Type
with built-in light, electrical distribution, water supply
Installation
for docks
Material
aluminum, stainless steel
Protection level
IP66
Other characteristics
LED, with meter, waterproof
Height

1,150 mm
(45 in)

Length

300 mm
(12 in)

Width

250 mm
(10 in)

Sockets number

4 unit

Amperage

Max.: 250 A

Min.: 16 A

Voltage

Max.: 400 V

Min.: 110 V

Water outlets number

4 unit

Description

Bellia series bring artisan way of quality together with exclusive technology. Operating Temperature - -30°C + 60°C IP Rating - Pedestal IP66 Sockets IP67 Compliances - CE Certified Low/High Temperature EN 60068-2 IP Rating EN 60529 Impact Rating EN 62262 LVD EN 60204-1 Solar Radiation EN 60068-2-5 Salt Fog/Mist/Corosion EN 60068-2-52 Overload & Fault Current Protection - Seperate for each outlet Taps - 1/2” valves, quick coupling Metering - Electricity and water metering with remote monitoring and prepaid system Monitoring through local/ marina network or RFID* Effective central software & easy to connect and use with mobile phones for the users No need of installing app, no need of internet connection
