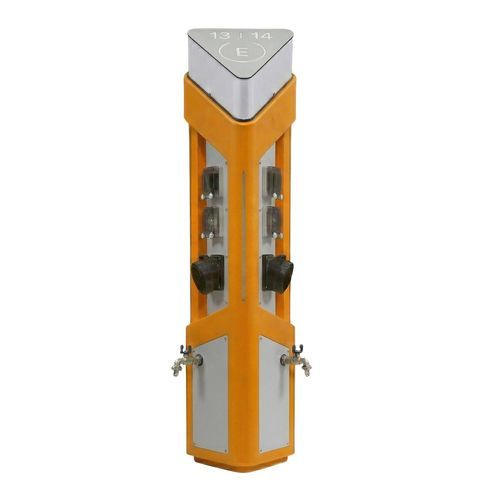

Water supply pedestal Trima

electrical distributionwith built-in lightfor docks

RedDot Award Winner Trima series is the best option for your needs up to 2 power & water outlets with an eye-catching compact design without missing any feature.

Trima is a marina service pedestal with a completely innovative look. The vision behind its triangular compact design is to free up the pier with occupying minimum space, knowing that is very limited. All the user related components including the plugs and taps have the right position and angle, providing a better user experience. 360 degrees lighting with adjustable intensity serves variety of needs on the pier. The customization is standard; numerous color options, full set of features inside the compact design, and a space at the back for communication allows unique products for each marinas. Fully recyclable body, reduced electricity and water consumption with easy remote control, auto-switch sensors for illumination are all results of Trima’s respect to environment.

Material - High Density Polyethylene / UV Protection
Operating Temperature - -30°C + 60°C
IP Rating - Pedestal IP66
Sockets IP67
Impact Rating - IK10
Compliances - CE Certified
CE Certified
Low/High Temperature EN 60068-2
IP Rating EN 60529
Impact Rating EN 62262
LVD EN 60204-1
Solar Radiation EN 60068-2-5
Salt Fog/Mist/Corosion EN 60068-2-52
Overload & Fault Current Protection - Seperate for each outlet
Taps - 1/2” valves, quick coupling
Lighting - 360 lighting, low energy led with photocell sensor
Metering - Electricity and water metering with remote
monitoring and prepaid system
