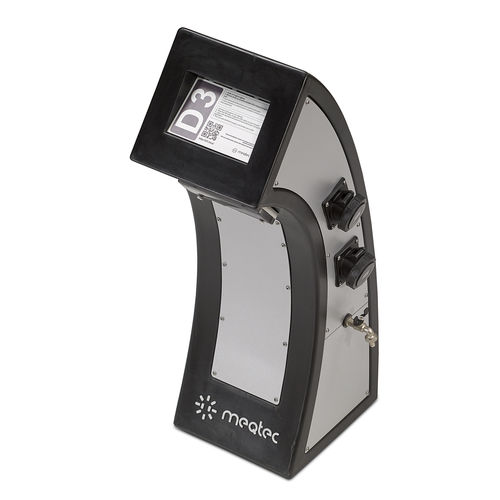

Pedestal with built-in light Curva
electrical distributionwater supplyfor docks

pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
pedestal with built-in light
Add to favorites
Compare this product


Characteristics

Type
with built-in light, electrical distribution, water supply
Installation
for docks
Material
polyethylene
Protection level
IP66
Other characteristics
LED, compact, with meter, pre-payment system, waterproof
Height

1,150 mm
(45 in)

Length

300 mm
(12 in)

Width

250 mm
(10 in)

Sockets number

2 unit

Amperage

Min.: 16 A

Max.: 250 A

Voltage

Min.: 110 V

Max.: 400 V

Water outlets number

2 unit

Description

Curva series provides the widest range of features. From touch screen to stainless steel exterior, you can find any option you need on a service pedestal. Material - High Density Polyethylene / Stainless Steel Weight - Operating Temperature - -30°C + 60°C IP Rating - Pedestal IP66 Sockets IP67 Impact Rating - IK10 Compliances - CE Certified Low/High Temperature EN 60068-2 IP Rating EN 60529 Impact Rating EN 62262 LVD EN 60204-1 Solar Radiation EN 60068-2-5 Salt Fog/Mist/Corosion EN 60068-2-52 Overload & Fault Current Protection - Seperate for each outlet Taps - 1/2” valves, quick coupling Lighting - Low energy led with photocell sensor Metering - Electricity and water metering with remote monitoring and prepaid system
