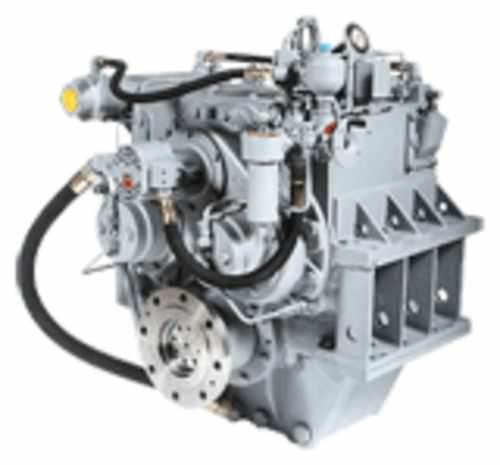

Ship reduction gearbox MM W3700
enginetransmissionpropulsion

ship reduction gearbox
ship reduction gearbox
ship reduction gearbox
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Applications
engine, transmission, propulsion
Power

466 kW, 936 kW, 1,145 kW
(633.6 hp, 1,272.6 hp, 1,556.8 hp)

Rotational speed

1,200 rpm, 1,800 rpm, 2,200 rpm
(7,540 rad.min-1, 11,310 rad.min-1, 13,823 rad.min-1)

Description

Vertical offset, direct or remote mount marine transmission. Maximum rated input: 850 KW Available for Continuous Duty applications. Description • Robust design also withstands continuous duty in workboat applications. • Fully works tested, reliable and simple to install. • Design, manufacture and quality control standards comply with ISO 9001. • Reverse reduction marine transmission with hydraulically actuated multi-disc clutches. • Easy onboard maintenance. • Compatible with all types of engines and propulsion systems. (Both FPP & CPP applications). Features • Case hardened and precisely ground gear teeth for long life and smooth running. • Output shaft thrust bearing designed to take maximum propeller thrust astern and ahead. • Smooth and reliable hydraulic shifting with control lever for attachment of push-pull cable or other operating system. • Suitable for twin engine installations (same ratio and torque capacity in ahead or astern mode) • Emergency “get home” capability. • Robust cast iron casing. • Free standing. • Oil cooler complete with fittings and flexible hoses. • Integrated brackets.
