Ship repeater MD77ROT

for compassesanalog

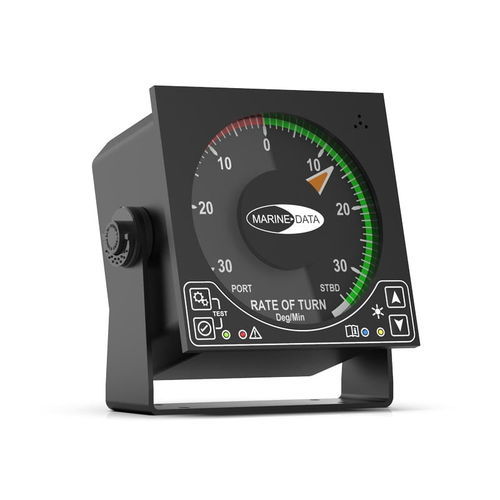

The MD77ROT is a NMEA-based Rate of Turn Indicator, displaying the Rate in degrees per minute. Housed in a robust, compact aluminium enclosure with a touch panel for background and pointer illumination, the MD77ROT is ideal for any vessel The MD77ROT provides a clear and easy to read 118 mm diameter analogue dial display, graduated in 1 degree per minute increments. Rate range: Up to 30 degrees per minute to Port and Starboard. Compact and rugged, the MD77ROT offers a solution for locations where the available space is limited and may be either bulkhead or panel mounted. Finished in Jet Black (RAL9005) Fine-texture Powder Coat to complement other marine navigation equipment. The MD77ROT from Marine Data: flexible in application, easy to install and simple to maintain. FEATURES Clear and Easily Read Dial Display Rate of Turn up to 30°/min Panel or Bulkhead Mounted Touch Controls Local and Remote Dimming Control Automatic Detection of Previously Lost Data Digital NMEA 0183 APPLICATIONS To display Rate of Turn (ROT) data transmitted from NMEA 0183 compatible marine equipment at a convenient location
