Signal converter MD97TMC
NMEANMEAfor ships

signal converter
signal converter
signal converter
signal converter
signal converter
Add to favorites
Compare this product

Characteristics

Type
signal
Input
NMEA
Output
NMEA
Application domain
for ships

Description

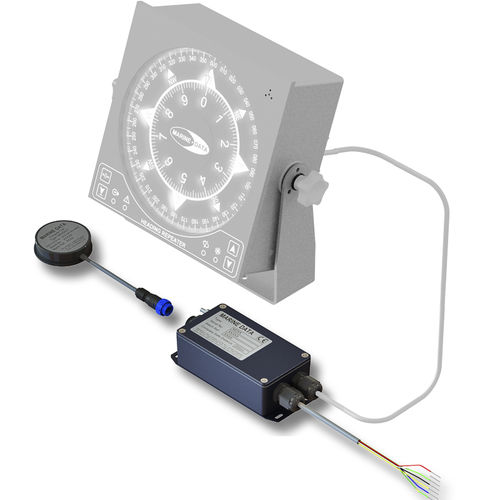

OVERVIEW The MD97TMC is a Transmitting Magnetic Compass (TMC) System which detects and transmits the ship’s Compass Heading over a NMEA 0183 digital connection to one or more Heading Repeaters (Compass Repeaters) at any convenient location on a vessel. The Calibration Control and Sensor Processor is used to calibrate the Compass Sensor by turning the ship through 390°. The latest technology accurately processes and converts compass card position to NMEA 0183 Heading Data. The Marine Data MD97TMC Transmitting Magnetic Compass System is simple and intuitive to use with quick and easy installation. APPLICATIONS Provides 2 digital NMEA heading outputs to drive Heading Repeaters (or other devices) at a convenient location An elegant alternative to using an optical reflector in a ship’s magnetic compass installation ACCESSORIES MD71THD – Control & Display unit provides additional functionality MD54 – Compass Sensor Adhesive Mount MD58 – Compass Sensor Bracket Mount PARTS INCLUDED IN THIS TMC SYSTEM MD52A/B – Compass sensor MD97CSP – Compass sensor processor 2.5 m D-type 15-way data cable for supplying system power and carrying 2x NMEA 0183 data channel outputs COMPASS SENSOR MOUNTING (NOT INCLUDED) Optional Sensor Mount MD54 or MD58 – this is not included as standard because it depends on the type of host magnetic compass. Since there are many different manufacturers of magnetic compass, please contact us to obtain the correct sensor mount.
