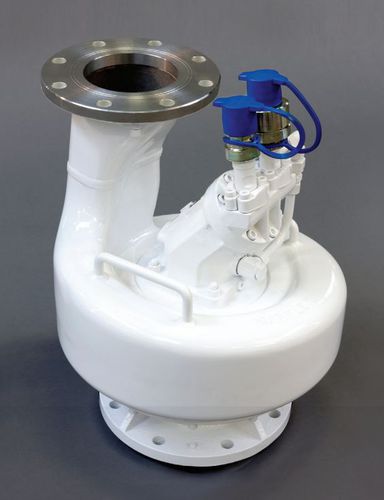

Ship pump MSP series
transferoilcentrifugal

ship pump
ship pump
ship pump
ship pump
ship pump
ship pump
ship pump
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Applications
transfer
Fluid
oil
Technology
centrifugal
Operation
hydraulic
Other characteristics
submersible, mobile
Flow rate

Min.: 48 l/min
(12.68 us gal/min)

75 l/min
(19.81 us gal/min)

Max.: 130 l/min
(34.34 us gal/min)

Pressure

250 bar, 320 bar
(3,625.9 psi, 4,641.2 psi)

Weight

52 kg, 75 kg, 83 kg, 92 kg, 98 kg
(114.6 lb, 165.3 lb, 183 lb, 202.8 lb, 216.1 lb)

Height

373 mm, 575 mm, 590 mm, 610 mm, 1,430 mm
(15 in, 23 in, 23 in, 24 in, 56 in)

Description

Portable submersible pumps are versatile in that they can be used in various situations and industries. They can be used as a backup pump for firefighting, salvaging, sewing, or as an oil recovery pump. These pumps can be used in various locations due to their lightweight aluminum design, compact size, and flexible hoses, meaning that these pumps can be moved easily from one location to another. Simply connect to a powerpack, whenever the portable pump is needed. The MarFlex Submersible Pumps (MSP) can withstand roughly the same temperature as our regular deepwell cargo pumps. The MSP (MarFlex Submersible Pump) is typically provided as part of the newbuilding Deepwell Pump package for onboard seagoing vessels, ensuring that the vessel can operate at any time The MSP comes in three assorted designs, depending on your specific requirements: MSP80/200/500 = Centrifugal pump The centrifugal submersible pump is mainly used as a back-up, and we supply this in the newbuilding package MSP100/150 = Screw pump The screw submersible pump can be used for oil recovery, salvage, sewage, and agriculture pumping purposes MSPEH16/200 = Eccentric helical mono pump The mono pump is a hydraulic-driven, eccentric helical pump that utilizes the positive displacement principle Materials used Due to its mobile nature, the MSP housing is made up of lighter aluminum, perfect for easy storage and installation.

Catalogs
