Marine pump MSP-80
transferhydraulic systemoil

Add to favorites

Compare this product

Go to the Marflex website for more information

Characteristics

Application domain: marine
Applications: transfer, hydraulic system
Fluid: oil, fuel
Technology: centrifugal, impeller
Operation: hydraulic, mechanical, drive
Material: PTFE
Flow rate: 75 l/min
(19.81 us gal/min)
Pressure: 320 bar
(4,641.2 psi)
Hose diameter: 250 mm
(10 in)
Weight: 38 kg
(83.8 lb)
Height: 558 mm
(22 in)

Description

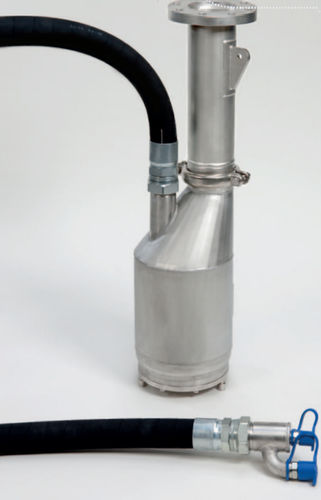

The MSP-80 is a light and compact, high capacity hydraulic drive, centrifugal pump and designed for a wide range of products such as: chemicals • acids • solvents • petroleum products • crude oil • edible oils The pump impeller is keyed directly to the hydraulic motor shaft enabling a very compact design. Between the hydraulic motor and the pump impeller is a double mechanical seal arrangement to ensure a proper segregation between the hydraulic and product side All parts exposed to the cargo are made of AISI 316L or PTFE. The pump has a maximum diameter of 250 mm and can be utilised via a standard 12” tank cleaning hatch. The pump can be driven by a ship’s hydraulic system or by means of a portable powerpack. As standard the pump is delivered with an 18 m concentric hydraulic hose with a start-stop valve at the other end. A fl ow control can be delivered as an option.
