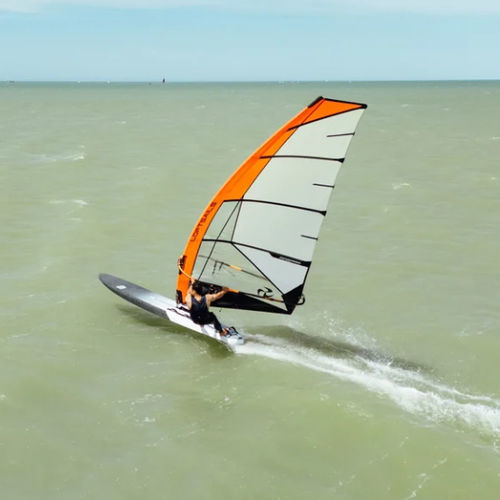

Light-wind windsurf sail ULW V8

raceSDM5-batten

Overview
The Raceboardblade ULW V8 is a super light and medium-wind raceboard sail developed from direct competitive feedback and refined with the Loftsails Raceboard Team. The design delivers earlier drive in light airs, reduced swing-weight through transitions, and consistent responsiveness across race conditions.

Earlier Power in Marginal Winds
The ULW V8 features a deeper overall profile and a fuller upper section to generate drive when winds are light. A softer upper batten and an exposed tack eyelet enable on-the-fly downhaul adjustment for marginal conditions.

Light Through Transitions
A higher aspect ratio (longer luff, shorter boom) lowers swing weight and keeps the rig balanced during tacks and gybes, improving pumping efficiency. Four TekCam 3s (35% lighter than the previous generation) stabilise the upper profile and shift it forward without adding rig mass.

Carbon ULW V8 — Stretch Resistance for the Upper Wind Range
The 9.5 m² Carbon ULW V8 uses 2 mil carbon X-Ply in place of standard quad-axial panels. Carbon threads along warp lines reduce stretch so the profile holds its design shape better as wind builds — an advantage in middle and upper wind ranges.

Trim Reactive Across the Wind Range
The ULW V8 responds predictably to downhaul and outhaul adjustments, allowing sailors to manage profile through heats. Side-alternating X-Ply batten pockets with triple scrim adhesive maintain rotation neutrality and consistent behaviour on both tacks.

The Advantage in Light Wind Racing
The Raceboardblade ULW V8 is aimed at competitors racing in super light to medium winds who require early drive, precise trim response, and low swing weight for efficient pumping and maneuvering.

Highlights

• LIGHT WIND SPECIALIST — Optimised for 0–16 knot winds and flat-water raceboards; deeper profile and fuller upper section for early drive.
• HIGH PUMPING RESPONSE — Efficient forward drive with rapid shape recovery after each pump.
• CARBON 9.5 — 9.5 m² design available in Carbon: 2 mil carbon X-Ply panels for upper-range stretch resistance.
• PROVEN IN COMPETITION — Developed and validated with the Loftsails Raceboard Team.
• TEKCAM 3 SYSTEM — 35% lighter cams with integrated strap on Raceboardblade versions to prevent cam pop-out when trimmed very soft.

Key Features / Construction Details

• Blade Mast Pocket — Downhaul load shared between mast panel and pocket for a clean leading edge and smooth rotation.
• Dacron / SU250PE Mast Sleeve — Dacron in upper sleeve for low weight; SU250PE in lower sleeve for wear resistance where downhaul loads concentrate.
• High-Visibility Panels — 4 mil X-Ply in the main window and strategically placed panels along the mast pocket for clear forward sightlines.
• Carbon Batten System — Lightweight carbon tubes with rear-shifted segments produce a shallower entry profile, reducing drag and improving cam rotation.
• TekCam 3 — 35% lighter with smoother rotation and support for higher batten angles; includes Velcro strap on Raceboardblade versions.
• Metallic Cam Interface (MCI) — Reinforced contact points to prevent wear and ensure smooth cam function.
• Reinforced Panels — 5 mil bi-axial X-Ply at the foot and 3.5 mil at clew/head corners; double-width seam between clew panel and window for outhaul resistance.
• Side-Alternating X-Ply Batten Pockets — Match stretch of adjacent panels to minimise asymmetry and maintain balanced profile on both tacks.
• Exposed Tack — Allows installation of adjustable downhaul systems for precise on-the-fly tuning.
• Track Strap with Eyelet — Keeps strap tension independent from downhaul load for precise tack control without altering overall trim.

Specifications

• Size: 7.5 m²
• Luff: 506 cm
• Boom: 214 cm
• Head: Fixed
• Extension: 16 cm
• Battens: 5
• Cambers: 4
• Weight: 4.24 kg
• Recommended mast: Team Edition SDM 490
