Radar multi-purpose instrument KSD-1100

AISautomatic identification systemchart plotter

Overview

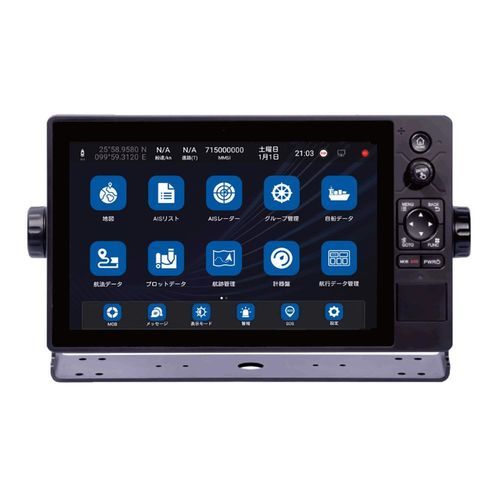

Multifunction navigation display with a 10.1-inch capacitive touch screen and integrated Class B AIS transceiver for situational awareness and chart overlay. Supports multiple display modes for navigation, monitoring and route planning.

Features

• Built-in Class B AIS: Integrated transceiver for transmission and reception of AIS targets to enhance situational awareness.
• Multiple display modes: AIS radar with configurable range rings, dashboard for vessel parameters, NAVI and PLOT data management, and tide information display.
• Video monitoring: Supports connection of network cameras (owner supplied) with display on up to four split-screen windows.
• Chart support: Compatible with C-MAP MAX, proprietary charts and ENC; supports overlaying satellite imagery on charts.
• AIS radar overlay: AIS targets overlaid on charts with adjustable range rings around own vessel for target monitoring.
• Dual monitor support: Output to a sub-monitor to show different content from the main screen.
• Control and operation: Primary operation via touch screen; mouse operation and a physical control panel are supported (mouse and cameras supplied by owner).

Documentation (manuals and brochure)
Product PDF brochure available.
Operation Manual V1.3.68 and earlier (Rev03).
Advanced Operation Manual V1.3.68 and earlier (Rev02).
Operation Manual V2.3.17 and later / V1.3.22 and later (Rev06).
Advanced Operation Manual V2.3.17 and later / V1.3.22 and later (Rev05).

Screen & Media
Support for screen images including C-MAP MAX, Sailing Data and AIS List. Product introduction and feature videos available.

Technical specifications

• Output power: 2 W
• Display: 10.1 inch capacitive multi-touch screen
• Frequency: 156.025 MHz to 162.025 MHz
• Bandwidth: 25 kHz
• Dimensions: 195 (H) x 338 (W) x 75 (D) mm
• Weight: 2.1 kg
• Power supply: 10.8 VDC to 31.2 VDC
