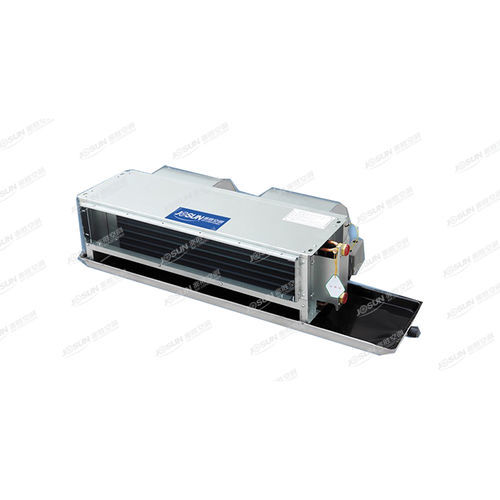

Ship fan coil unit CFP-1.7~7WA

Marine horizontal hidden mounted fan coil, the water pond is deepened and designed in double-deck. The fan coil is suspended above ceiling. Air outlet grille is equipped. It is controlled by temperature controller installed on bulkhead. Main components It is mainly composed of efficient fin type heat exchanger, double inlet centrifugal fan, casing, water pond, return air grille, outlet grille, connection box, control panel and installation accessories, control methods include touch panel program control and knob control. Function The function is to conduct cooling and dehumidification in summer, heating in winter and ventilation in middle seasons. The fan in fan coil has high, medium, low three control steps. In summer, it takes 7℃ chilled water as cooling medium, in winter, it takes 45℃ heating water as heating medium. Advantages The patented design- double-deck water pond structure, improve the resistance to swing greatly, it has the advantages of flexible arrangement, simple operation, low noise, stable performance, convenient maintenance, long service life, etc. Basic parameters： ● cooling capacity：1.7～7kW ● air flow：340～1360m3h ● external static pressure：≈20Pa ● Power supply: standard equip AC 1PH 220V 50Hz other power source can be selected if it is needed: AC 1PH 230V 60Hz ● Control valves: two-way control valve, three-way control valve of famous brands can be supplied. ● Control method: standard equip digital display temperature controller Application： It is widely used in all kinds of passenger ships, cargo ships, pleasure boats, public service ships and warships.
