Marine air conditioning system CJKR

for ships

Product Overview

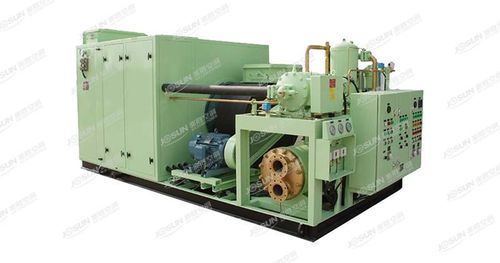

Marine water cooled AHU is a central AC unit after several years of continuous technical improvement, carrying the technology security and innovation. The main function is to conduct cooling and dehumidification in summer, heating in winter and ventilation in middle seasons. This AHU completes all heat and humidity exchange in plant, the treated air is delivered to each cabin through air duct, terminal units.

Product Features

• Type demonstration:
  • "C": marine
  • "JK": packaged type AC
  • "R" represents heating, without "R" represents only cooling
  • "302": nominal cooling capacity is 302kW

Main Components

• Compress-condensing unit (refrigeration compressor, horizontal shell and tube type condenser and control components)
• Air handling unit (fin type evaporator, heater and humidifier)
• Air supply section (centrifugal fan and marine motor)
• Mixing and filtering section (mixing box, fresh air regulation valve, air filter)
• Electric control unit
• Frame structure, suction type; all parts are installed on a base

Product Function

• Cooling and dehumidification in summer
• Heating in winter
• Ventilation in middle seasons
• Completes all heat and humidity exchange in plant
• Treated air is delivered to each cabin through air duct, terminal units

Product Advantage

• Marine direct AHU sets all functional components in one
• Convenient and simple operation
• Compact structure
• Low energy consumption
• Low noise
• Shock and swing resistance
• Convenient maintenance
• Design, manufacture, delivery of AC system is conducted according to the standard of classification societies (such as "CCS", "ABS", "NK", "DNV") and "navy"
• Can be manufactured according to customer's actual demands

Basic Parameters
● Cooling capacity: 23kW~302kW
● Heating capacity: 35kW~302kW
● Air flow: 2200~25000m³/h
● External static pressure: 450~2000Pa
● Refrigerant: standard equip R404A, R134a, R407C, R449A and some other refrigerant can be selected
● Power supply: standard equip AC 3PH 380V/50Hz, AC 3PH 440V/60Hz, other power source can be selected if needed: AC 3PH 415V/50Hz, AC 3PH 460V/60Hz, AC 3PH 480V/60Hz, AC 3PH 690V/60Hz
● Compressor: piston type or screw type (open type or semi-hermetic type), standard equip Bitzer compressor, BOCK, Carrier and other brands also can be selected
● Number of compressor: single or multiple
● Single refrigerating circuit can be adopted, double refrigerating circuit also can be selected, the unit equips two independent refrigerating circuits, and each system equips one compressor. When one of the refrigerating circuits is running, the other one can be used as standby
● Capacity regulation: multistage
● Cooling method: water cooled (fresh water/sea water)
● Marine shell and tube type condenser: efficient anti-corrosion radiating tube, material can adopt HAL77-2, B10, B30; clad tube sheet: copper end cover or iron end cover
● Replaceable filter element type dry filter, washable/replaceable air filter
● Fresh air preheating unit, auxiliary electrical heater and cold air prevention device can be set according to requirements
● Protection function: high pressure, low pressure, oil pressure (oil level), low water pressure (water volume), lack phase, overheat, overload
● Control elements: adopt the control valves and pressure switches of domestic and overseas famous brands
● Control method: manual control or automatic control

Application
It is widely used in all kinds of passenger ships, cargo ships, warships and offshore oil platforms.

Caractéristiques / Spécifications techniques

• Cooling capacity: 23kW~302kW
• Heating capacity: 35kW~302kW
• Air flow: 2200~25000m³/h
• External static pressure: 450~2000Pa
• Refrigerant: R404A, R134a, R407C, R449A (others selectable)
• Power supply: AC 3PH 380V/50Hz, AC 3PH 440V/60Hz (others selectable)
• Compressor: piston or screw type (open/semi-hermetic), Bitzer/BOCK/Carrier/other brands
• Number of compressors: single or multiple
• Refrigerating circuits: single or double (independent, standby possible)
• Capacity regulation: multistage
• Cooling method: water cooled (fresh/sea water)
• Condenser: marine shell and tube, anti-corrosion, materials: HAL77-2, B10, B30
• Filter: replaceable dry filter, washable/replaceable air filter
• Fresh air preheating, auxiliary heater, cold air prevention (optional)
• Protection: high/low/oil/water pressure, lack phase, overheat, overload
• Control: manual or automatic, valves and switches from famous brands
