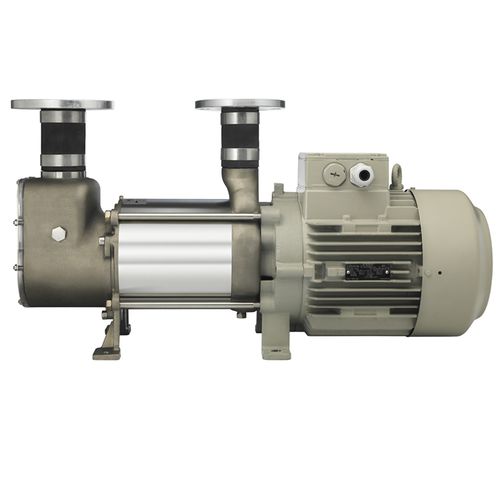

ship vacuum pump / toilet / electric
95MB

Add to MyNauticExpo favorites
ship vacuum pump / toilet / electric ship vacuum pump / toilet / electric - 95MB
  • Ship vacuum pump / toilet / electric
{{requestButtons}}

Characteristics

  • Application domain:

    for ships

  • Applications:

    toilet

  • Operation:

    electric

Description

The new 95MB has 30% more capacity than the 65MBA it replaces, at the same price! It serves passenger ships and large building complexes with thousands of toilets smoothly and efficiently.

Air capacity: 93.000 litres/hour
Flushing capacity 60Hz: 800 flushes/hour
Flushing capacity 50Hz: 730 flushes/hour
Material: Stainless steel
Motor: 5,5 kW (50 Hz) - 6,3 kW (60Hz)
Weight: 95 kg

Detailed specs:
External dimensions: 820 x 267 x 335 mm (L x W x H)
Connection inlet: DN65, PN10
Connection outlet: DN50, PN10
Pump house material: Stainless steel
Rotor house material: Stainless steel
Knife material: Stainless steel
Shaft material: Stainless steel

Current consumption at 230V AC: 18,7A/50Hz
Current consumption at 400V AC: 10,7A/50Hz
Current consumption at 440V AC: 11,2A/60Hz
*Other voltages available on request

The 95MB Vacuumarator™ pump is designed for connection to any kind of sewage treatment plant, collecting tank or virtually any other processing or storage unit.
