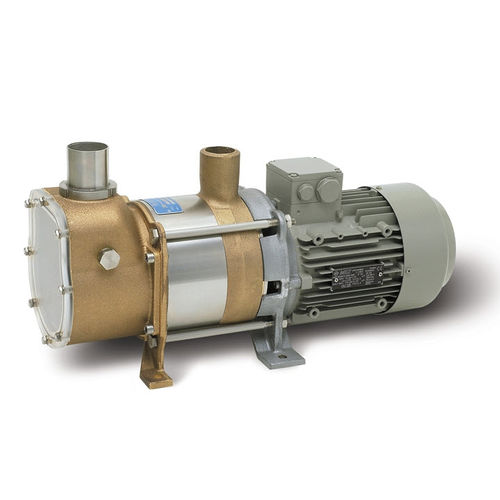

ship vacuum pump / toilet / electric
15MB-D

{{requestButtons}}

Characteristics

  • Application domain:

    for ships

  • Applications:

    toilet

  • Operation:

    electric

  • Flow rate:

    5,000 l/h (1,320.86 us gal/h)

Description

A powerful and versatile model for high intensity use, with continuous discharge capability. Essentially a 15MB with a more powerful motor.

Air capacity: 15.000 litres/hour
Liquid capacity: 5.000 litres/hour
Flushing capacity 60Hz: 150 flushes/hour
Flushing capacity 50Hz: 120 flushes/hour
Material: Stainless steel/Bronze
Motor: 2,2 kW (50 Hz) - 2,55 kW (60Hz)
Weight: 37,6 kg
Detailed specs:
External dimensions: 214 x 554 x 332 mm (W x L x H - including compensator)
Connection, inlet: 50 mm
Connection, outlet: 50 mm
Pump house material: Bronze
Rotor house material: Stainless steel
Knife material: Stainless steel
Shaft material: Stainless steel

Current consumption at 220V AC: 8,3A/50Hz
Current consumption at 255V AC: 8,2A/60Hz
Current consumption at 380V AC: 4,8A/50Hz
Current consumption at 440V AC: 4,75A/60Hz
*Other voltages on request

The 15MB-D Vacuumarator™ pump is designed for connection to any kind of sewage treatment plant, collecting tank or virtually any other processing or storage unit.
