ship vacuum pump / toilet / electric



  • Application domain:

    for ships

  • Applications:


  • Operation:


  • Flow rate:

    12,000 l/h (3,170.06 us gal/h)

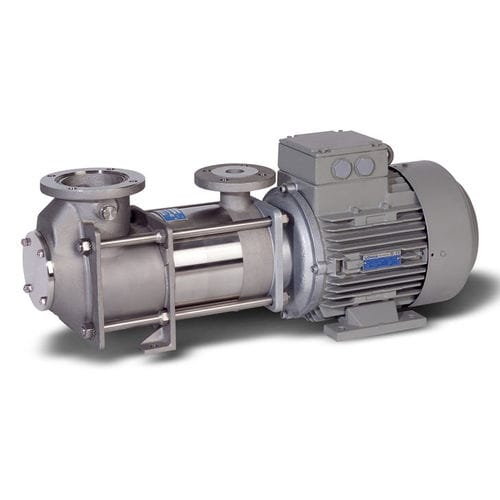

A powerful and robust model for high intensity use, with continuous discharge capability. The 25MB-D uses the same motor as our larger 65MBA pump, safely enabling extended run times.

Air capacity: 26.000 litres/hour
Liquid capacity: 12.000 litres/hour
Flushing capacity 60Hz: 240 flushes/hour
Flushing capacity 50Hz: 190 flushes/hour
Material: Stainless steel
Motor: 5,5 kW (50 Hz) - 6,75 kW (60 Hz)
Weight: 102 kg
Detailed specs:
External dimensions: 795 x 260 x 444 mm (L x W x H)
Connection, inlet: DN50, PN10
Connection, outlet: DN32, PN10
Pump house material: Stainless steel
Rotor house material: Stainless steel
Knife material: Stainless steel
Shaft material: Stainless steel

Current consumption at 230V AC: 18,7A/50Hz
Current consumption at 380V AC: 10,8A/50Hz
Current consumption at 440V AC: 12A/60Hz
*Other voltages on request

The 25MB-D Vacuumarator™ pump is designed for connection to any kind of sewage treatment plant, collecting tank or virtually any other processing or storage unit.
