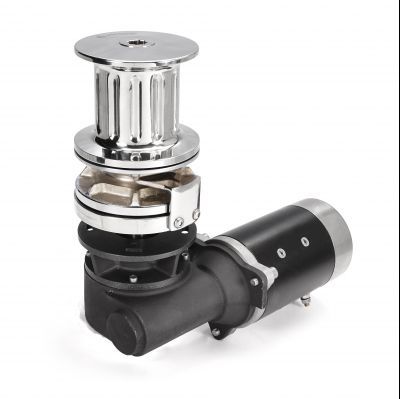

Electric windlass STARfor boatsverticalabove deck
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Application domain
- for boats
- Mounting
- vertical
- Set-up
- above deck
- Number of drums
- single-drum
- Working load
Max.: 380 kg
(838 lb)Min.: 170 kg
(375 lb)- Maximum pull
1,700 kg
(3,748 lb)- Engine power
1,500 W, 1,700 W, 2,000 W
(2 hp, 2 hp, 3 hp)- Power supply
12 V, 24 V, 230 V, 400 V
- Amperage
Max.: 138 A
Min.: 70 A
- Chain diameter
8 mm, 10 mm
(0 in, 0 in)- Boat length
18 m
(59'00" )- Weight
30 kg, 35 kg
(66 lb, 77 lb)
Description
STAR is a stainless steel AISI 316 vertical windlass. Available in high or low profile, with different drives and recommended for boats up to 19m. STAR can use chains from 10 mm to 12 mm and comes with built-in chain counter sensor. Possibility of 12V, 24V, 230V, 400V or hydraulic drive.
Catalogs
MZ_Catalogue_2023
122 Pages
