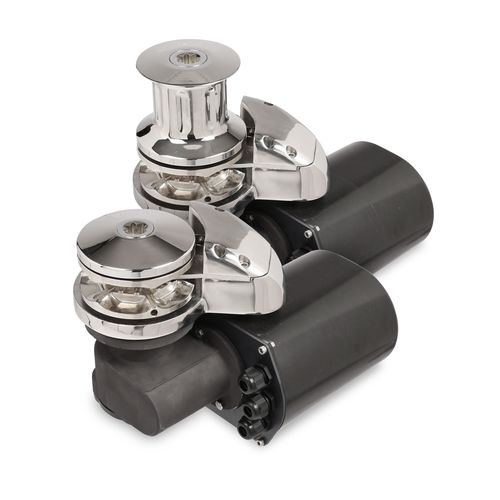

Electric windlass SMART PLUS

for boatsverticalabove deck

Characteristics

Operation

electric

Application domain

for boats

Mounting

vertical

Set-up

above deck

Number of drums

single-drum

Function

anchor with capstan

Working load

Min.: 100 kg (220 lb)

Max.: 240 kg (529 lb)

Maximum pull

390 kg, 750 kg, 1,060 kg, 1,250 kg, 1,650 kg (860 lb)

Engine power

700 W, 1,000 W, 1,500 W, 1,700 W (1 hp)

Power supply

12 V, 24 V

Amperage

Min.: 60 A

Max.: 138 A

Chain diameter

6 mm, 8 mm, 10 mm (0 in)

Weight

17 kg, 18 kg, 24 kg (37 lb)
