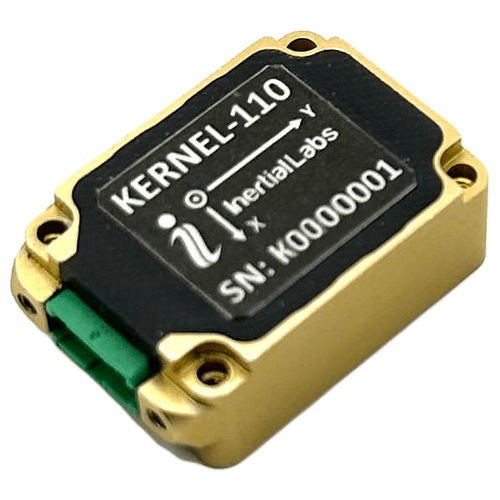

Ship inertial navigation system IMU-Kernel-110

IMUMEMS

The Inertial Labs MEMS KERNEL Inertial Measurement Units & Digital Tilt Sensors are the second generation of the Inertial Labs KERNEL Miniature MEMS sensor-based family. Revolutionary due to its very compact, selfcontained strapdown, industrial-grade Inertial Measurement Systems that measures linear accelerations and angular rates with three-axis MEMS accelerometers and three-axis MEMS gyroscopes. Angular rates and accelerations are determined with low noise and very good repeatability for both motionless and dynamic applications. The Inertial Labs KERNEL-110 and KERNEL-120 models are the breakthrough, fully integrated inertial solutions that combines the latest MEMS sensor technologies. KERNEL-120 model utilizes two types of accelerometers: with ±40g and ±90g measurement ranges. Fully calibrated, temperature compensated, mathematically aligned to an orthogonal coordinate system, the IMU contains up to 2 deg/hr Bias in-run stability gyroscopes and 0.01 mg Bias in-run stability accelerometers with very low noise and high reliability. Continuous Built-in Test (BIT), configurable communications protocols and flexible input power requirements make the Inertial Labs KERNEL easy to use in a wide range of higher order integrated system applications. The Inertial Labs KERNEL models were designed for applications, like: ❖ Autonomous vehicles ❖ Antenna and Line of Sight Stabilization Systems ❖ Passengers trains acceleration / deceleration and jerking systems ❖ Motion Reference Units (MRU) and Motion Control Sensors (MCS) ❖ Gimbals, EOC/IR, platforms orientation and stabilization ❖ GPS-Aided Inertial Navigation Systems (INS) ❖ Attitude and Heading Reference Systems (AHRS)
