Ship inertial navigation system IMU-P Industrial

IMUMEMSITAR Free

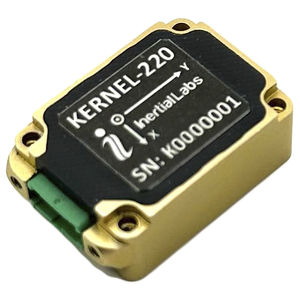

• ITAR free (ECCN 7A994 - No License Required) • Designed for stabilization (S) and guidance (A) • Affordable price • 1 deg/hr Gyro Bias in-run stability • 0.08 deg/√hr Angular Random Walk • up to ±90 g accelerometers dynamic range • 5 μg Accelerometers Bias in-run stability • 0.015 m/s/√hr Velocity Random Walk • 0.05 deg Pitch & Roll accuracy • Optional input from external GNSS and INS data output The Inertial Labs Inertial Measurement Unit (IMU-P) is an Advanced MEMS sensors based, compact, self-contained strapdown, industrial and tactical grade Inertial Measurement Systems and Digital Tilt Sensor, that measures linear accelerations, angular rates, Pitch & Roll with three-axis high grade MEMS accelerometers and three-axis tactical grade MEMS gyroscopes. Angular rates and accelerations are determined with high accuracy for both motionless and dynamic applications. The Inertial Labs IMU-P is breakthrough, fully integrated inertial solutions that combine the latest MEMS sensors technology. Fully calibrated, temperature compensated, mathematically aligned to an orthogonal coordinate system, IMU demonstrate less than 1 deg/hr gyroscopes and 0.005 mg accelerometers bias inrun stability with very low noise and high reliabilit Continuous Built-in Test (BIT), configurable communications protocols, electromagnetic interference (EMI) protection, and flexible input power requirements make the Inertial Labs IMU-P easy to use in a wide range of higher order integrated system applications. The Inertial Labs IMU-P models are able to get an aiding data from external source of GNSS and then to output full spectrum of INS data (Positions, Attitude, Velocity and Time).
