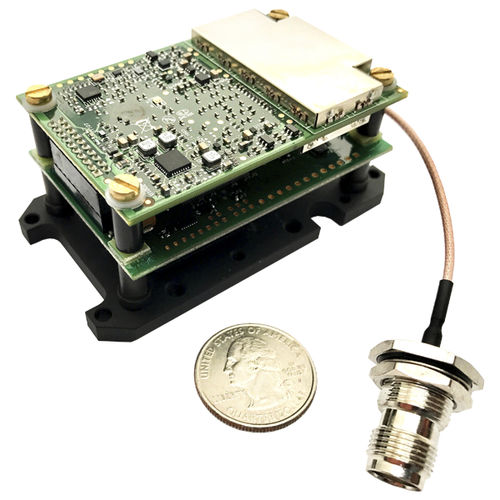

Ship INS INS-B-OEM

IMUfor hydrographic surveys

The Inertial Labs GPS-Aided Inertial Navigation System (INS-B-OEM) is OEM version of new generation, fully-integrated, combined GPS, GLONASS, GALILEO and BEIDOU GNSS and high-performance strapdown system, that determines position, velocity and absolute orientation (Heading, Pitch and Roll) for any device on which it is mounted. Horizontal and Vertical Position, Velocity and Orientation are determined with high accuracy for both motionless and dynamic applications. The Inertial Labs INS-B-OEM utilizes advanced single antenna GNSS receiver, barometer, 3-axes each of calibrated in full operational temperature range Advanced MEMS Accelerometers and Gyroscopes to provide accurate Position, Velocity, Heading, Pitch and Roll of the device under measure. INS-B-OEM contains Inertial Labs new on-board sensors fusion filter, state of the art navigation and guidance algorithms and calibration software. KEY FEATURES, BENEFITS & FUNCTIONALITY • Commercially exportable GPS-Aided Inertial Navigation System • Small size & light weight: 85 x 47 x 36 mm size and 115 gram weight • High precision IMU (1 deg/hr gyroscopes and 5 micro g accelerometers Bias in-run stability) • GPS, GLONASS, GALILEO, BEIDOU, SBAS, DGPS, RTK supported signals • Compatibility with LiDARs (Velodyne, RIEGL, FARO) • Trigger for optical camera • Up to 2000 Hz IMU; 200 Hz INS and 20 Hz GNSS data rate • GNSS measurements and IMU raw data for post processing • Advanced, extendable, embedded Kalman Filter based sensor fusion algorithms • State-of-the-art algorithms for different dynamic motions of Vessels, Ships, Helicopters, UAV, UUV, UGV, AGV, ROV, Gimbals and Land Vehicles
