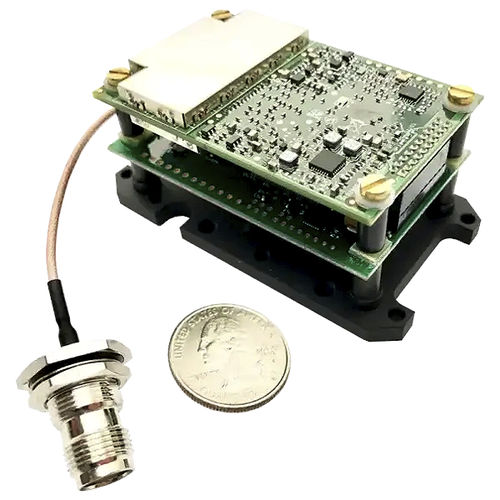

Ship INS INS-P-OEM

IMUfor hydrographic surveys

• Tactical Grade IMU • Competitively priced • Small Size, light weight • NovAtel / u-blox / Septentrio GNSS Receiver • 0.5 cm Position accuracy (PPK) • 0.03 deg Heading accuracy (PPK) • 0.006 deg Pitch & Roll accuracy (PPK) • Ideal solution for accurate point clouds • Compatible with LIDAR, Optical camera • Applications: flight control, remote sensing • Embedded gyro compensated Fluxgate compass • Real time (RTK) & Post Processing (PPK) Kinematics The Professional Inertial Labs GPS-Aided Inertial Navigation System (INS-P-OEM) is the OEM version of Inertial Labs’ new generation, fully-integrated, combined GPS, GLONASS, GALILEO, QZSS, NAVIC and BEIDOU GNSS and high-performance strapdown system, that determines position, velocity and absolute orientation (Heading, Pitch and Roll) for any device on which it is mounted. Horizontal and Vertical Position, Velocity and Orientation are determined with a high level of accuracy for both motionless and dynamic applications. The Inertial Labs INS-P-OEM utilizes an advanced single antenna GNSS receiver, barometer, 3-axes each of calibrated in full operational temperature range precision Fluxgate magnetometers, Advanced MEMS Accelerometers and Gyroscopes to provide accurate Position, Velocity, Heading, Pitch and Roll of the device under measure. The INS-P-OEM contains Inertial Labs new on board sensors fusion filter, state of the art navigation and guidance algorithms, and calibration software. KEY FEATURES, BENEFITS & FUNCTIONALITY • Commercially exportable GPS-Aided Inertial Navigation System • Small size & light weight: 85,5 x 47,7 x 46,9 mm size and 174-gram weight
