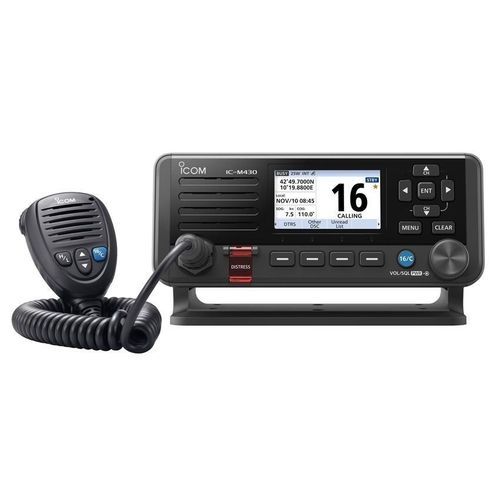

Marine transceiver IC-M430E

for boatradioVHF

Product overview
The IC-M430E is a fixed-mount marine VHF/DSC radio designed for installation in tight helm panels. It combines a high-visibility colour TFT display, built-in GNSS receiver/antenna (with external antenna option), NMEA 2000 and NMEA 0183-HS connectivity, and integrated hailer and foghorn functions with a manual and Class D DSC Distress Button.

Key features

• High-visibility colour TFT display with three selectable modes (Day, Day-Black, Night) for clear readability in varying light conditions.
• Compact slimline chassis that reduces installation depth while keeping standard flush-mount front dimensions.
• Built-in GNSS (GPS) receiver and antenna; external GNSS antenna supported for improved reception.
• NMEA 2000 and NMEA 0183-HS interfaces for system integration with chartplotters, AIS and onboard networks.
• 25 W audio output with built-in hailer and automatic foghorn; dedicated manual and Class D DSC Distress Button for safety operations.
• VSWR alert to monitor antenna performance and assist troubleshooting.
• Active Noise Cancelling (ANC) on transmit and receive to improve voice clarity in noisy maritime environments.
• Dualwatch and Tri-watch monitoring (Channel 16 and call channels) for simultaneous channel surveillance.
• Front-access flush mounting and support for remote microphone installation to ease retrofits and custom helm layouts.

Options and accessories

• HM-195GB / HM-195GW: COMMANDMIC remote control microphone (operation up to 18.3 m / 60 ft from the radio).
• HM-205RB: Speaker microphone.
• MA-510TR: Stand-alone AIS transponder with wide-angle colour display and navigation/collision features.
• MBF-9: Flush mount kit for transceiver installation.
• OPC-1000: Extension cable for rear fist microphone with bulk mount socket.
• OPC-1541: Extension cable for HM-195B/GB and HM-229B Commandmics.
• OPC-2522L / OPC-2523L: L-type conversion cables for microphone and CommandMic connections.
• SP-37: External hailer horn speaker with mounting bracket.
• UX-241: External GNSS antenna (same as supplied with certain Icom models) for enhanced GNSS reception.

Video
A product overview video is available demonstrating the IC-M430E's display modes, connectivity options and installation examples.

Technical specifications

• Colour TFT display with 3 modes: Day, Day-Black, Night.
• Compact slimline chassis for reduced depth and flush mounting.
• 25 W audio output; integrated hailer and automatic foghorn.
• Manual and Class D DSC support with Distress Button.
• NMEA 2000 and NMEA 0183-HS compatibility.
• Built-in GNSS receiver and antenna; external GNSS antenna supported.
• VSWR alert function for antenna health monitoring.
• Active Noise Cancelling (ANC) on transmit and receive.
• Dualwatch and Tri-watch monitoring for Channel 16 and call channels.
