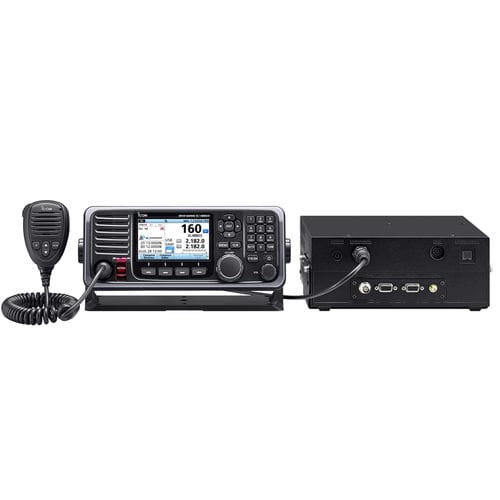

Marine radio IC-M803
shipsfixedVHF

marine radio
marine radio
marine radio
Add to favorites
Compare this product


Characteristics

Application domain
marine, ships
Type
fixed
Network
VHF, HF, SSB
Protection level
waterproof, IPX7
Output power

20 W, 60 W, 100 W, 150 W

Transmission frequency range

Min.: 2 MHz

Max.: 28 MHz

Reception frequency range

Min.: 500 kHz

Max.: 30,000 kHz

Weight

4.4 kg, 760 kg
(9.7 lb, 26.8 lb)

Height

94 mm
(3.7 in)

Width

240 mm
(9.4 in)

Depth

238 mm
(9.4 in)

Description

Long Range Communications Beyond the Horizon Distress Button for Emergency Distress button with a spring-loaded cover If in an emergency situation, press the large independent Distress button to send an automated digital Distress signal. The digital distress signal with GPS coordinates calls for help from other ships or coast stations. Built-in DSC Watch-Keeping Receiver with the Multiple Task Mode The dedicated DSC watch-keeping receiver continuously scans the six distress channels in rotation. A total of 100 MMSI numbers (75 Individual and 25 Group) for DSC calls can be stored with a 10-character ID name. When you receive a DSC call, while you are in process with another DSC call, the IC-M803 can hold both DSC procedures to switch between the DSC calls with the Multiple Task Mode function. Intuitive User Interface A combination of the large main dial and software keys at the bottom of the display, provides simple operation and easy access to often used functions. You can smoothly enter channel numbers, MMSI numbers, vessel names with the alpha-numeric keypad. In addition, one of software key functions can be assigned to the microphone’s programmable button for quick access. 4.3 inch Wide Viewing Angle Color TFT Display The 4.3 inch color TFT display provides an almost 180 degree very wide viewing angle and displays high resolution characters and function icons. You can clearly see the display information from various viewing angles. So the radio can be installed without choosing the installation place. The night mode display ensures good readability in low light conditions.
