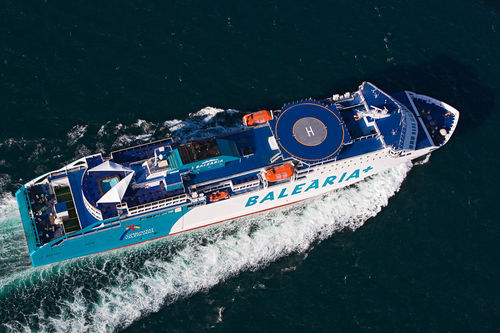

passenger ferry
SF ALHUCEMAS

Add to MyNauticExpo favorites
passenger ferry passenger ferry - SF ALHUCEMAS
{{requestButtons}}

Characteristics

  • Length:

    150.91 m, 154.51 m (495'01")

  • DWT:

    3,200,000 kg (7,054,792 lb)

  • Passenger capacity:

    1,000 unit

Description

Main particulars:Length Overall (with appendixes): 154.51
Length Overall: 150.91 m
Length between Perpendiculars: 137.00 m
Moulded Breadth: 24.20 m
Depth to Upper Deck: 13.55 m
Depth to Main Deck: 8.35 m
Extreme Draught: 5.80 m
Design Moulded Draught: 5.50 m
Deadweight at 5.50 m approx.: 3200 T
Service Speed: 21.60 knots
Range at Service Speed: 3000 miles
Classification:Bureau Veritas: 1HullMACH Ro-Ro passenger ship, unrestricted navigation,
AUT-UMS, AUT-PORT, MON-SHAFT, INWATER SURVEY
Propulsion & Manoeuvring Equipment:Main Engines: 2 x 9000 kW at 500 rpm
Generating Sets: 3 x 1140 kW at 1000 rpm
Emergency Gensets: 1 x 280 kW at 1500 rpm
2 x CP Main Propellers, 4 Blades, 4200 mm Diameter
2 x 1000 kW CP Bow Tunnel Thrusters
Cargo Capacity:Max. Capacity (crew + passengers): 1000 people
No. of Cabins: 46 x 4 pax cabins, 8 x 2 pax cabins and
2 x 3 pax cabins for disabled people
Number of Cargo Decks: 2 + 1 cardeck
Maximum Cargo Capacity for Cars: 125 cars (2.1 m width)
Maximum Cargo Capacity for Trailers: 1367 LM (3.0 m width)
Cargo Equipment:2 Stern Ramp-Doors: 16.00 m length x 8.0 m wide
1 Movable Cardeck in Garage between Deck No. 4 and 6
Fore Ramp-Door “Clamp Type“ for the access of cars from shore
2 Tilting Ramps between Deck No. 3 and 4
Tanks Capacity:HFO Capacity: 611 m³
DO Capacity: 92 m³
Lub. Oil Capacity: 50 m³
Fresh Water Capacity: 134 m³
