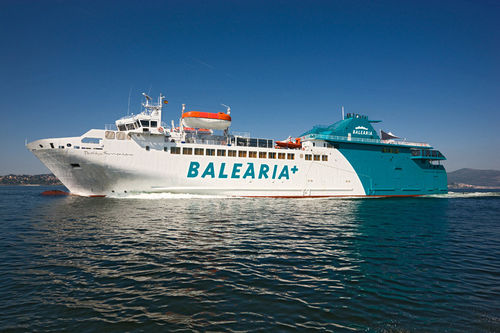

passenger ferry
PASSIÓ PER FORMENTERA

{{requestButtons}}

Characteristics

  • Length:

    101 m (331'04")

  • DWT:

    850,000 kg (1,873,929 lb)

  • Passenger capacity:

    800 unit

Description

Main particulars:Length Overall: 101.00 m
Length between Perpendiculars: 86.60 m
Moulded Breadth: 17.00 m
Depth to Upper Deck: 11.50 m
Depth to Main Deck: 6.00 m
Extreme Draught: 4.30 m
Design Moulded Draught: 4.00 m
Deadweight at 4.00 m approx.: 850 T.
Service Speed: 20.89 knots
Range at Service Speed: 2200 miles
Classification:Bureau Veritas: 1HullMACH Ro-Ro passenger ship, Unrestricted navigation,
AUT-UMS, AUT-PORT, INWATER SURVEY
Propulsion & Manoeuvring Equipment:Main Engines: 2 x 4500 kW at 750 rpm
Generating Sets: 3 x 560 ekW at 1500 rpm
Emergency Gensets: 1 x 280 kW at 1500 rpm
2 x CP Main Propellers, 4 Blades, 3000 mm Diameter
2 x 495 kW CP Bow Tunnel Thrusters
Cargo Capacity:Max. Capacity (crew + passengers): 800 people
Number of Cargo Decks: 1 + 1 cardeck
Maximum Cargo Capacity for Cars:
540 LM (2.2 m width)
Maximum Cargo Capacity for Trailers:
304 LM (2.9 m width)
