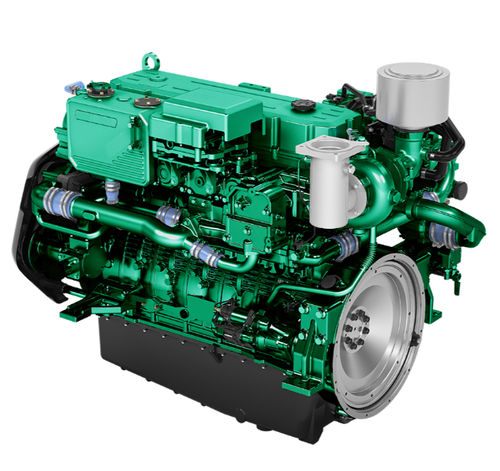

Inboard engine 4AD126Cdieselcommercialcommon-rail
Add to favorites
Compare this product
Characteristics
- Type
- inboard
- Power source
- diesel
- Market
- commercial
- Technology
- turbocharged, common-rail, SCR
- Engine type
- in-line
- Pollution control standard
- Tier 3
- Power
390 ch, 455 ch
(390 hp, 455 hp)- Engine speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Bore
123 mm
(4.8 in)- Stroke
155 mm
(6.1 in)- Length
1,607 mm
(63 in)- Width
912 mm
(36 in)- Height
1,287 mm
(51 in)- Weight
1,182 kg
(2,606 lb)
Description
It is a 11-liter turbo-intercooler in-line 6-cylinder electronic engine with maximum output of 455PS@1,800 that meets IMO Tier II/III and EPA Tier 3 regulations.
High performance solution
- Advanced Fuel Injection System with common Rail
- Compliance with emission regulation (Satisfy IMO Tier II/III, EPA Tier 3)
- SCR (Selective Catalytic Reduction) technology is used for Tier 3
- Increased durability of key components
- Decrease smoke leve
Convenience / Maintainability / Stability
- Application of Auto Tensioner
- Application of Turning Device
- Application of Safety Guards
- Application of Electrical oil drain pump
- Application of CCV type for improving engine room cleanliness
Economical solution
- Maintaining engine power node of mechanical engine and decreasing fuel consumption to average 5% by downsizing
- Increased oil &filter replacement cycle (250hr → 500hr
