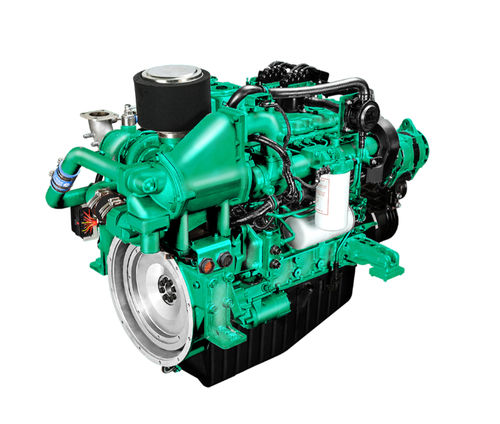

Inboard engine 4AD066Cauxiliarydieselcommercial
Add to favorites
Compare this product
Characteristics
- Type
- inboard, auxiliary
- Power source
- diesel
- Market
- commercial
- Technology
- turbocharged, direct fuel injection, SCR
- Engine type
- in-line
- Pollution control standard
- Tier 3
- Power
209 ch, 250 ch
(209 hp, 250 hp)- Displacement
6 l
(2 gal)- Number of cylinders
6 unit
- Engine speed
1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)- Bore
100 mm
(3.9 in)- Stroke
125 mm
(4.9 in)- Length
1,408 mm
(55 in)- Width
837 mm
(33 in)- Height
1,155 mm
(45 in)- Weight
753 kg
(1,660 lb)
Description
It is a 6-liter turbo-intercooler in-line 6-cylinder electronic engine with maximum output of 250PS@1,800 that meets IMO Tier II/III and EPA Tier 3 regulations.
High performance solution
- Advanced Fuel Injection System with common Rail
- Compliance with emission regulation (Satisfy IMO Tier II/III, EPA Tier 3)
- SCR (Selective Catalytic Reduction) technology is used for Tier 3
- Increased durability of key components
- Decrease smoke leve
Convenience / Maintainability / Stability
- Application of Auto Tensioner
- Application of Turning Device
- Application of Safety Guards
- Application of Electrical oil drain pump
- Application of CCV type for improving engine room cleanliness
Economical solution
- Maintaining engine power node of mechanical engine and decreasing fuel consumption to average 5% by downsizing
- Increased oil &filter replacement cycle (250hr → 500hr)
