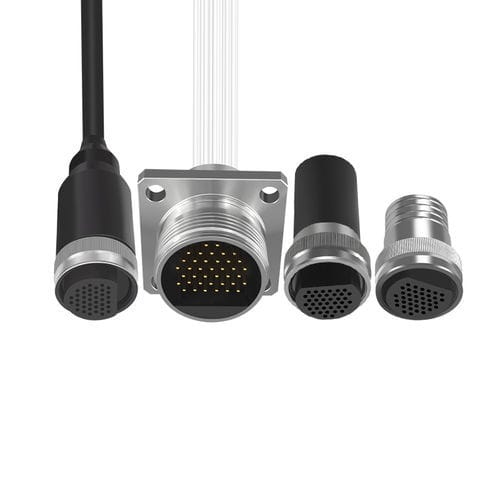

Oceanographic connector Metal Shell 55 Series (39 Contacts)electricfor aquacultureoceanographic research
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- underwater, for aquaculture, oceanographic research, oceanographic
- Shape
- circular
- Contact number
- 22 contacts, 19 contacts, 55 contacts, 37 contacts
- Other characteristics
- inline
Description
Product Description
Connector Specification
Electrical Specification
Material Specification
Options include:
Application Fields
Characteristics / Technical Specifications
- Drawing Information: Dimensions in mm. Threads in inches. 1 inch = 25.4mm.
Connector Specification
- Contacts: 39
- Inline Cable and BH Lead: 0.5mm²
Electrical Specification
- 500V @ 2-5Amp
- Contact Resistance: < 0.01Ω
- Insulation Resistance: > 200MΩ
- Mating: > 500 cycles
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Inline Cable Color Code: White No. Mark
Material Specification
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Characteristics / Technical Specifications
- Series: 55 Series
- Number of Contacts: 39
- Voltage: 500V
- Current: 2-5A
- Contact Resistance: < 0.01Ω
- Insulation Resistance: > 200MΩ
- Mating Cycles: > 500
- Temperature Range: -4℃ to +60℃
- Depth Rating: 6000m
- Connector Body Material: Chloroprene rubber
- Shell Material Options: 316L stainless steel, titanium
- Contact Material: Gold plated brass
- Nut/Washer Material: 304 stainless steel
- O-ring Material: Nitrile
- Locking Sleeve Material: POM
- Inline Cable and BH Lead: 0.5mm²
- Inline Cable Color Code: White No. Mark
