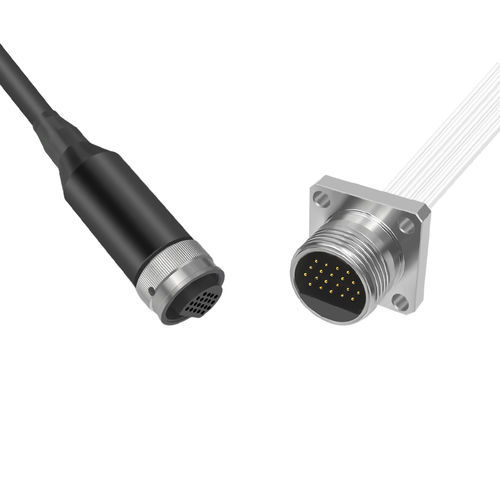

Subsea connector Metal Shell 55 Series (12 and 20 Contacts)electricfor aquacultureoceanographic research
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic research
- Shape
- circular
- Contact number
- 12 contacts, 20 contacts
- Other characteristics
- inline
Description
Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
Contacts: 12, 20
Inline Cable and BH Lead: 1 mm² 500V@6-10Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code: White No. Mark
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: Stainless Steel
Options include:
Application Fields:
Characteristics / Technical Specifications:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
Contacts: 12, 20
Inline Cable and BH Lead: 1 mm² 500V@6-10Amp
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
Inline Cable Color Code: White No. Mark
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: Stainless Steel
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Characteristics / Technical Specifications:
- Series: Metal 55 Series
- Shell: Metal
- Number of Contacts: 12 and 20
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating Cycles: ＞500
- Temperature Range: -4℃~+60℃
- Depth Rating: 6000m
- Connector Body Material: Chloroprene rubber
- BH Body Material: 316L stainless steel/titanium
- Contact Material: Gold plated brass
- Nut and Washer Material: 304 stainless steel
- O-ring Material: Nitrile
- Locking Sleeve Material: Stainless Steel
