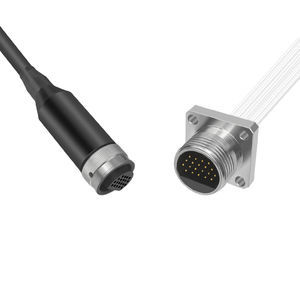

Subsea connector Metal Shell 55 Series (8 and 13 Contacts)

electricEthernetfor aquaculture

Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm

Connector Specification：
Contacts: 8, 13
Inline Cable and BH Lead:
8 Contacts: 1 mm² 500V@10-20Amp
13 Contacts: 1 mm² 500V@6-10Amp
(Power + Ethernet) Optional
Contact Resistance: ＜0.01Ω
Insulation Resistance: ＞200MΩ
Mating: ＞500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m

8 Contacts Inline Cable Color Code:

• 1. Black
• 2. White
• 3. Red
• 4. Green
• 5. Orange
• 6. Blue
• 7. White/Black
• 8. Red/Black(Brown)

13 Contacts Inline Cable Color Code: White No. Mark

Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM

Options include:

• 1. Cable length
• 2. Shell material: stainless steel, titanium
• 3. Thread length

Application Fields：

• 1. Oil & Gas Industry
• 2. Marine Renewable Energy
• 3. Mine Detection & Neutralization
• 4. Oceanographic Research & Exploration
• 5. Underwater Communication & Networking
• 6. Aquaculture & Underwater Farming

Technical Specifications / Features

• Series: 55
• Contacts: 8, 13
• Voltage: 500V
• Current: 10-20A (8 contacts), 6-10A (13 contacts)
• Contact Resistance: ＜0.01Ω
• Insulation Resistance: ＞200MΩ
• Mating Cycles: ＞500
• Temperature Range: -4℃~+60℃
• Depth Rating: 6000m
• Connector Body Material: Chloroprene rubber
• BH Body Material: 316L stainless steel/titanium
• Contact Material: Gold plated brass
• Nut and Washer Material: 304 stainless steel
• O-ring Material: Nitrile
• Locking Sleeve Material: POM
