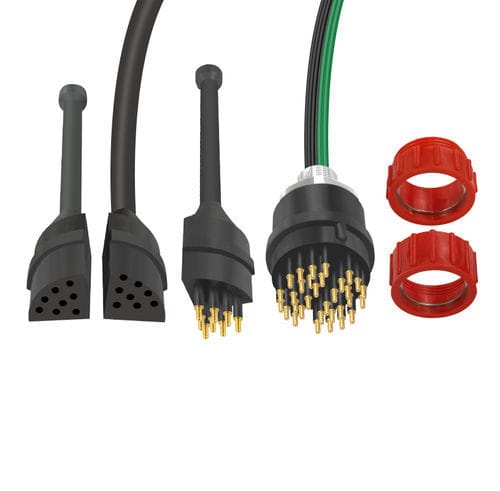

Electric connector Circular Split Type (20,24 and 32 Contacts)for aquacultureoceanographic researchsubsea
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- for aquaculture, oceanographic research, subsea
- Shape
- circular
- Contact number
- 24 contacts
- Other characteristics
- inline
Description
Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
Contacts: 20, 24, 32
Inline Cable and BH Lead: 0.5mm²
Electrical Specification: 300V@3-5Amp
Contact Resistance: <0.01Ω
Insulation Resistance: >200MΩ
Mating: >500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
BH Lead Color Code:
Inline Cable Color Code:
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include:
Application Fields:
Characteristics / Technical Specifications:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
Contacts: 20, 24, 32
Inline Cable and BH Lead: 0.5mm²
Electrical Specification: 300V@3-5Amp
Contact Resistance: <0.01Ω
Insulation Resistance: >200MΩ
Mating: >500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m
BH Lead Color Code:
- Black
- White
- Red
- Green
Inline Cable Color Code:
- Black
- White
- Red
- Green
- Orange
- Blue
- Purple
- Brown
Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Characteristics / Technical Specifications:
- Contacts: 20, 24, 32
- Inline Cable and BH Lead: 0.5mm²
- Electrical Specification: 300V@3-5Amp
- Contact Resistance: <0.01Ω
- Insulation Resistance: >200MΩ
- Mating: >500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
