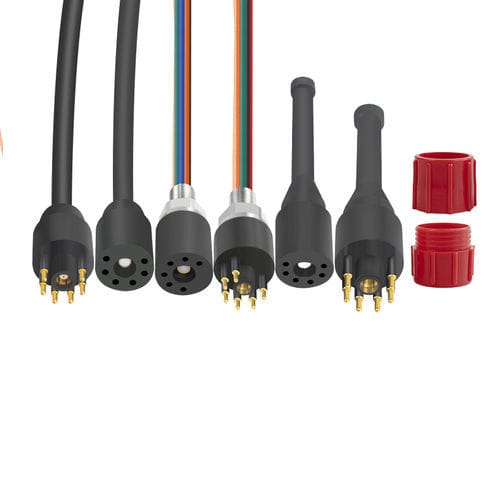

Marine connector 1 Coaxial (6 Contacts)

electricfor aquaculturefor shipbuilding

Product Description
The Lanhe 1 Coaxial Connector with 6 Contacts provides combined RF/power transmission in a rugged micro-circular design. Ideal for industrial, marine, and telecom applications requiring multi-signal integration.

Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4 mm

Connector Specification
Contacts: 6
Inline Cable (1m): RG179 75Ω PUR coaxial cable
BH Lead (0.5m): RG179 75Ω PUR cable
Electrical Specification: 0.5 mm², 300V@3Amp
Max. Frequency: 3GHz
Cable Loss: 0.27dB/m@100MHz, 0.54dB/m@400MHz, 0.87dB/m@1GHz
Contact Resistance: <0.01Ω
Insulation Resistance: >200MΩ
Mating: >500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m

Inline Cable Color Code

• Black
• White
• Red
• Green
• Orange
• Blue

Material Specification
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM
Snap Ring: Stainless Steel

Options Include

• Cable length
• Shell material: stainless steel, titanium
• Thread length

Application Fields

• Oil & Gas Industry
• Marine Renewable Energy
• Mine Detection & Neutralization
• Oceanographic Research & Exploration
• Underwater Communication & Networking
• Aquaculture & Underwater Farming

Technical Specifications / Features

• 6 contacts hybrid connector for combined RF/power transmission
• Rugged micro-circular design
• Suitable for industrial, marine, and telecom applications requiring multi-signal integration
• Depth rating up to 6000m
• Temperature range: -4℃ to +60℃
• High insulation and low contact resistance
• Multiple shell and cable options
