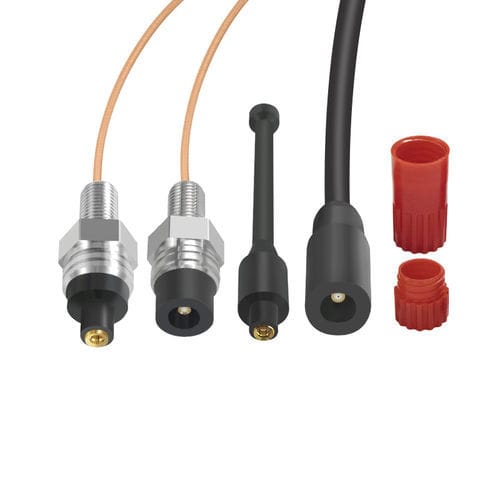

Subsea connector 50Ω Circular Coaxial (Single Contact)electricfor aquaculturefor shipbuilding
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic research, for shipbuilding
- Shape
- circular
- Contact number
- 1 contact
- Other characteristics
- inline
Description
Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
Material Specification:
Options include:
Application Fields:
Technical Specifications / Features:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification:
- Contacts: 1
- Inline Cable (1m): RG316 50Ω PUR coaxial cable
- BH Lead (0.5m): RG316 50Ω PUR cable
- RG316 Cable Loss: 1.53dB/m@3GHz, 0.86dB/m@1GHz, 0.54dB/m@400MHz
- RG400 Cable Loss: 0.88dB/m@3GHz, 0.48dB/m@1GHz, 0.30dB/m@400MHz
- Electrical Specification: 250VDC
- Max. Frequency: 3GHz
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
Material Specification:
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
- Snap Ring: Stainless Steel
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields:
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Technical Specifications / Features:
- 50Ω circular coaxial single contact connector
- Precision RF performance
- Rugged waterproof design
- Suitable for harsh industrial and marine environments
- Max. frequency: 3GHz
- Depth rating: 6000m
- Temperature range: -4℃ to +60℃
- Contact resistance: ＜0.01Ω
- Insulation resistance: ＞200MΩ
- Material options: stainless steel, titanium
