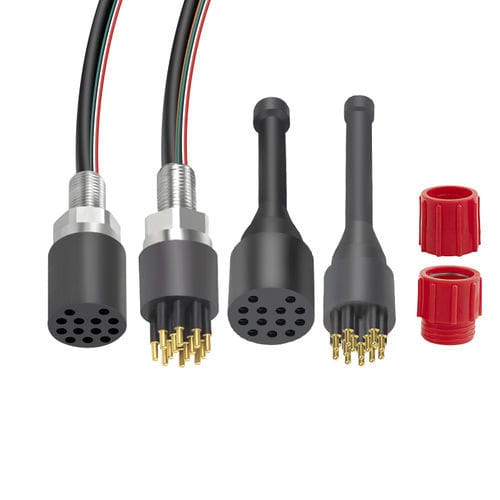

Micro circular connector Micro Circular Ethernet (13 Contacts)Ethernetfor aquacultureoceanographic research
Add to favorites
Compare this product
Characteristics
- Type
- Ethernet
- Application domain
- subsea, for aquaculture, oceanographic research, oceanographic
- Shape
- micro circular
- Contact number
- 13 contacts
- Other characteristics
- inline
Description
Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification：
Inline Cable Color Code:
Material Specification:
Options include:
Application Fields：
Caractéristiques / spécifications techniques :
Dimensions in mm
Threads in inches
1 inch=25.4mm
Connector Specification：
- Contacts: 13
- Inline Cable (1m) and BH pigtail (0.5m): 4 twisted pairs 23AWG (24 AWG optional), 4*18AWG power cable (0.5 mm² available)
- Electrical Specification: 300VDC
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Transmission rating: 1 Gbit/s
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
Inline Cable Color Code:
- 1. Black
- 2. Shielding
- 3. White
- 4. Brown
- 5. Brown/White
- 6. Blue
- 7. Blue/White
- 8. Orange
- 9. Orange/White
- 10. Green
- 11. Green/White
- 12. Red
- 13. Green
Material Specification:
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
Options include:
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields：
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Caractéristiques / spécifications techniques :
- Contacts: 13
- Electrical Specification: 300VDC
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Transmission rating: 1 Gbit/s
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
