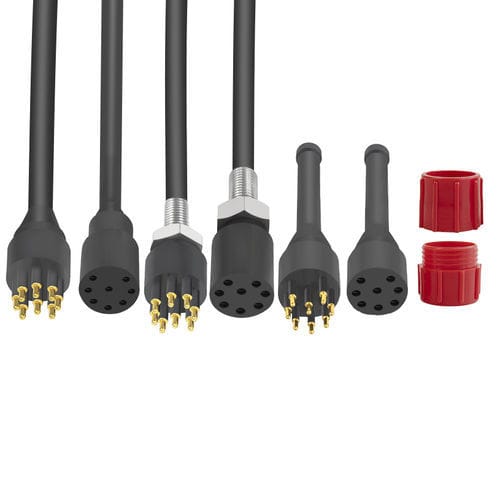

Ethernet connector Ethernet (8 Contacts)for aquaculturemarinefor sailboats
Add to favorites
Compare this product
Characteristics
- Type
- Ethernet
- Application domain
- subsea, for aquaculture, for ROV, oceanographic research, oceanographic, for AUVs, for shipbuilding, for divers, for sailboats, marine
- Shape
- circular
- Contact number
- 8 contacts
- Other characteristics
- inline, bulkhead
Description
Product Description
The Lanhe Ethernet 8 Contacts Connector provides industrial-grade waterproof RJ45 connectivity for harsh environments. Featuring IP68 protection and a shielded design for reliable high-speed data transmission in demanding applications.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4 mm
Connector Specification
Inline Cable Color Code
Material Specification
Options Include
Application Fields
Technical Features / Specifications
The Lanhe Ethernet 8 Contacts Connector provides industrial-grade waterproof RJ45 connectivity for harsh environments. Featuring IP68 protection and a shielded design for reliable high-speed data transmission in demanding applications.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4 mm
Connector Specification
- Contacts: 8
- Inline Cable (1m): 4 twisted pairs 23AWG
- BH Lead (0.5m): 4 twisted pairs
- Electrical Specification: 250VDC
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Transmission rating: 1 Gbit/s
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
Inline Cable Color Code
- 1. Brown
- 2. Brown/White
- 3. Blue
- 4. Blue/White
- 5. Orange
- 6. Orange/White
- 7. Green
- 8. Green/White
Material Specification
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
Options Include
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
Technical Features / Specifications
- Number of contacts: 8
- Voltage rating: 250VDC
- Contact resistance: ＜0.01Ω
- Insulation resistance: ＞200MΩ
- Transmission speed: 1 Gbit/s
- Mating cycles: ＞500
- Temperature range: -4℃~+60℃
- Depth rating: 6000m
- Material: Chloroprene rubber, 316L stainless steel/titanium, gold plated brass, 304 stainless steel, nitrile, POM
