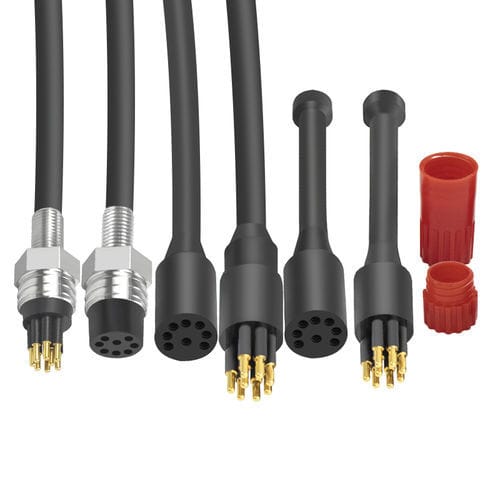

Ethernet connector Micro Circular Ethernet (8 Contacts)

for aquacultureoceanographicsubsea

Drawing Information:
Dimensions in mm
Threads in inches
1 inch=25.4mm

Connector Specification:
Contacts: 8
Inline Cable (1m): 4 twisted pairs 23AWG
BH Lead (0.5m): 4 twisted pairs
Electrical Specification: 250VDC
Contact Resistance: <0.01Ω
Insulation Resistance: >200MΩ
Transmission rating: 1 Gbit/s
Mating: >500
Temperature Rating: -4℃~+60℃
Depth Rating: 6000m

Inline Cable Color Code:

• 1. Brown
• 2. Brown/White
• 3. Blue
• 4. Blue/White
• 5. Orange
• 6. Orange/White
• 7. Green
• 8. Green/White

Material Specification:
Connector Body: Chloroprene rubber
BH Body: 316L stainless steel/titanium
Contacts: Gold plated brass
Nut and Washer: 304 stainless steel
O-ring: Nitrile
Locking Sleeve: POM

Options include:

• 1. Cable length
• 2. Shell material: stainless steel, titanium
• 3. Thread length

Application Fields:

• 1. Oil & Gas Industry
• 2. Marine Renewable Energy
• 3. Mine Detection & Neutralization
• 4. Oceanographic Research & Exploration
• 5. Underwater Communication & Networking
• 6. Aquaculture & Underwater Farming

Technical Specifications / Features:

• 8 contacts
• Waterproof connector for harsh environments
• High-speed data transmission (1 Gbit/s)
• IP68 protection
• Industrial and marine networking applications
• Operating temperature: -4℃ to +60℃
• Depth rating: 6000m
• Contact resistance: <0.01Ω
• Insulation resistance: >200MΩ
• Mating cycles: >500
• Material: Chloroprene rubber, 316L stainless steel/titanium, gold plated brass, 304 stainless steel, nitrile, POM
