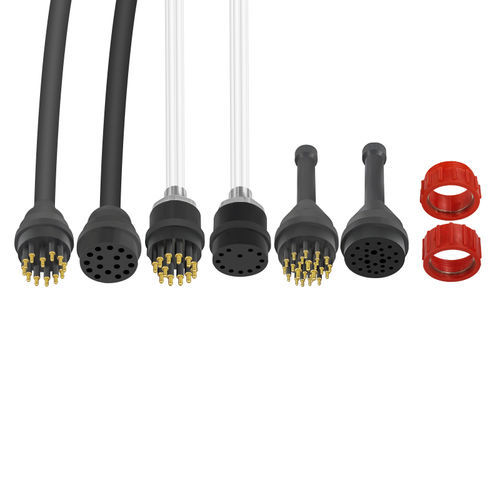

Subsea connector Circular Series (12-16-25 contacts)electricfor aquaculturefor shipbuilding
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Application domain
- subsea, for aquaculture, oceanographic, for shipbuilding
- Shape
- circular
- Contact number
- 12 contacts, 16 contacts, 25 contacts
- Other characteristics
- inline
Description
Product Description
Lanhe Subsea Circular Connectors with 12-25 contacts provide reliable underwater connectivity for critical subsea applications where space and performance are paramount.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4 mm
Connector Specification
Material Specification
Options Include
Application Fields
Lanhe Subsea Circular Connectors with 12-25 contacts provide reliable underwater connectivity for critical subsea applications where space and performance are paramount.
Drawing Information
Dimensions in mm
Threads in inches
1 inch = 25.4 mm
Connector Specification
- Contacts: 12, 16, 25
- Inline Cable: 1 mm²
- BH Lead: 1 mm²
- Electrical Specification: 600V @ 6-15Amp
- Contact Resistance: ＜0.01Ω
- Insulation Resistance: ＞200MΩ
- Mating: ＞500
- Temperature Rating: -4℃~+60℃
- Depth Rating: 6000m
- Inline Cable Color Code: White (No. mark)
Material Specification
- Connector Body: Chloroprene rubber
- BH Body: 316L stainless steel/titanium
- Contacts: Gold plated brass
- Nut and Washer: 304 stainless steel
- O-ring: Nitrile
- Locking Sleeve: POM
Options Include
- Cable length
- Shell material: stainless steel, titanium
- Thread length
Application Fields
- Oil & Gas Industry
- Marine Renewable Energy
- Mine Detection & Neutralization
- Oceanographic Research & Exploration
- Underwater Communication & Networking
- Aquaculture & Underwater Farming
- Marine Construction & Infrastructure
